Nikon Eclipse Microscopes for Medical Labs – Features, Applications & Digital Workflow

Q: What makes the Nikon ECLIPSE series suitable for medical laboratories?

Nikon’s ECLIPSE microscopes integrate high-quality optics, ergonomic design, digital imaging capabilities, and automated controls to support high-throughput medical workflows. Features such as eco-illumination, Light Intensity Management (LIM), motorized nosepieces, and digital alignment modes help reduce eye strain, maintain consistent illumination, and speed up routine assessments. Advanced models like the ECLIPSE Ui also support remote viewing and slide manipulation, making them ideal for telepathology and collaborative diagnostics.

Q: How does the ECLIPSE Ui facilitate remote pathology?

The ECLIPSE Ui replaces traditional eyepieces with an integrated PC and high-resolution monitor so multiple users can view the same field simultaneously. Its Remote Mode lets authorized users load slides, adjust focus and magnification, and capture images from any network-connected location. Automated alignment, tile view, and capture tools streamline complex comparisons such as multi-stain analysis and support efficient remote pathology workflows.

Q: What is Light Intensity Management (LIM)?

Light Intensity Management (LIM) is a feature that automatically records the brightness setting for each objective lens and restores it whenever the objective is changed. This prevents sudden illumination changes that can cause eye strain or disrupt image consistency. LIM is included in Nikon’s Ci and Si series and is also integrated into advanced models such as the Ti2-I, helping users maintain comfortable, reproducible imaging conditions.

Q: How does the Ni series support complex imaging techniques?

The Nikon Ni series uses a modular stratum structure that supports simultaneous mounting of multiple optical paths, motorized fluorescence attachments, and advanced imaging modules. High-precision Z-focus enables confocal and 3D imaging of thick specimens, while simultaneous multichannel acquisition allows independent capture of different wavelengths for multicolor fluorescence or FRET experiments. Automated control of filters, shutters, and illumination helps ensure reproducible, research-grade imaging conditions.

Q: How does the Ti2-I improve IVF workflows?

The Ti2-I streamlines IVF workflows by consolidating multiple observation settings into a single button press, reducing operational steps by up to around 75 percent. It uses circularly polarized light to visualize the spindle in color from any direction, helping embryologists avoid spindle damage and improving oocyte handling. Bright illumination and high-quality objectives provide clear views of oocytes and sperm, while motorized controls minimize manual adjustments during micromanipulation procedures.

Q: What advantages does digital cytopathology offer over conventional microscopy?

Digital cytopathology converts microscopic slides into high-resolution digital images that can be viewed, analyzed, and shared instantly. This improves diagnostic accuracy and consistency by enabling detailed review of subtle cellular changes and by reducing inter-observer variability through standardized image presentation. It also supports telepathology and remote collaboration between specialists, which is especially valuable in settings with pathologist shortages or when expert opinions are needed quickly.

Q: How do digital microscope scanners transform remote consultations?

Digital microscope and slide scanners eliminate the need to ship physical glass slides, allowing clinicians to share ultra-high-resolution images electronically in seconds. This speeds up consultations, reduces the risk of slide damage or loss, and simplifies logistics for multi-site institutions. When combined with platforms like Nikon’s Ui, tile view, alignment tools, and remote control functions allow specialists to jointly review and annotate cases for more efficient and accurate remote diagnosis.

Q: Are Nikon ECLIPSE microscopes suitable for education and training?

Yes. Nikon ECLIPSE microscopes, particularly digital models like the Ui, are well suited for education and training. The screen-based design allows groups of students to view the same field of view simultaneously, making demonstrations clearer and more engaging. Alignment and comparison modes support side-by-side review of different stains or structures, while digital connectivity enables live image sharing for tele-learning, online workshops, and hybrid classroom environments.

Q: How can laboratories integrate AI with Nikon’s microscopes?

Laboratories can integrate AI with Nikon’s digital microscopes by using the standardized, high-quality images they generate as input for AI models. These algorithms can assist with tasks such as automated cell counting, segmentation, pattern recognition, and anomaly detection. In digital cytopathology, computer-aided tools already help provide objective measurements and reduce variability. As software evolves, AI modules are expected to be more tightly integrated with Nikon platforms, enabling real-time decision support during image acquisition and review.

Introduction

Modern medical laboratories require microscopes that blend optics, automation, ergonomics and digital connectivity. Nikon, a company celebrating more than a century of microscopy innovation, has developed the ECLIPSE series of microscopes to meet this needmicroscope.healthcare.nikon.com. From the routine clinical Ci systems to the research‑ready Ni, ergonomic Si, fully digital Ui, and specialized Ti2 inverted instruments, the ECLIPSE range is designed to support manual and digital microscopy workflows.

The need for such advanced systems is underscored by the global shortage of pathologists and laboratory professionals. A 2025 article on digital pathology noted that delivering histopathology services to remote areas faces limitations, including a shortage of sub‑specialized professionals and the challenge of recruiting qualified staffpmc.ncbi.nlm.nih.gov. Digital pathology and telepathology offer solutions by enabling remote consultation and faster servicepmc.ncbi.nlm.nih.gov. High‑resolution digital microscopes like Nikon’s ECLIPSE Ui facilitate remote diagnosis by eliminating the need for physical slide transport and supporting collaborative analysisgrundium.com.

This in‑depth guide explores the features, applications, and real‑world uses of each Nikon ECLIPSE model. It explains how these microscopes enhance laboratory efficiency, support digital pathology and reproductive medicine, and prepare labs for the future of AI‑assisted diagnostics.

Female medical laboratory scientist working with a Nikon Eclipse microscope, observing fluorescently labeled cells displayed on a monitor in a modern clinical lab.

{getToc} $title={Table of Contents} $count={Boolean} $expanded={Boolean}

Overview of the Nikon ECLIPSE Series

Nikon’s ECLIPSE line comprises multiple microscopes optimized for different tasks.

Series	Type	Primary use case
Ci	Upright clinical microscope	Routine clinical examinations and teaching
Ni	Upright research microscope	Advanced research, fluorescence, confocal and multichannel imaging
Si	Entry‑level/ergonomic upright microscope	Education and routine labs, prioritising ergonomics
Ui	Digital upright microscope	Telepathology, remote diagnosis and digital workflows
Ti2 & Ti2‑I	Inverted microscopes	Live‑cell imaging and reproductive medicine (ICSI/IMSI)

While each instrument serves unique workflows, all share Nikon’s renowned optics, intuitive controls and compatibility with digital imaging systems. The following sections examine each series in detail.

Ci Series – The Clinical Workhorse

Ultra-realistic photo of a modern ECLIPSE Ci microscope on a clean laboratory bench, with objective lenses, mechanical stage, and focus knobs clearly visible against a softly blurred professional lab background

Ergonomic design and eco‑illumination

The ECLIPSE Ci series is designed for busy clinical laboratories where ease of use, comfort and reliability are paramount. A LED eco‑illumination system with a collimator lens and fly‑eye optics provides bright, uniform illumination while consuming little powermedicalexpo.com. This eco‑friendly LED has a life of about 60 000 hours, reducing the cost and effort of lamp replacementmedicalexpo.com.

Ergonomics is a key focus. The binocular head can be adjusted to accommodate different users and an optional eye‑level riser ensures natural posture during long sessionsmicroscope.healthcare.nikon.com. Stage height can be lowered with a spacer and the ceramic‑coated stage resists scratches. Such design reduces user fatigue and helps maintain concentration.

Motorization and Light Intensity Management

The Ci‑E model features motorized magnification switching. Changing objectives is as simple as pressing a button; users can program specific buttons for favourite lens pairs, speeding up routine workflowsmedicalexpo.com. Importantly, user‑defined light intensity for each magnification is automatically saved and reproduced when switching lenses. This Light Intensity Management (LIM) prevents sudden brightness changes and reduces eye strainmicroscope.healthcare.nikon.com.

Motorization extends beyond the nosepiece. Options include motorized condensers, fluorescence cube turrets and even remote control pads. With the DS‑L4 camera control tablet, users can change magnifications and capture images without touching the microscope bodymedicalexpo.com.

Imaging modes and attachments

The Ci series supports multiple observation modes. Attachments enable phase contrast, simple and sensitive polarizing, darkfield and epi‑fluorescence imagingmicroscope.healthcare.nikon.com. Fluorescence configurations can hold up to four or six filter cubes and high‑performance lenses, making the Ci useful for routine immunostaining and fluorescence applications.

Remote control and digital imaging

An optional remote controller and software allow the Ci‑E to be operated via a tablet or smartphone. Users can view live images, capture stills or record videos remotely. Integration with Nikon’s NIS‑Elements software provides automated imaging conditions and real‑time streamingmicroscope.healthcare.nikon.com. This digital integration makes the Ci series a gateway to telepathology and collaborative workflows.

Ni Series – A Modular Research Platform

Ultra-realistic photo of a modern research-grade compound microscope with trinocular head and digital camera mounted on a clean laboratory bench, set against a softly blurred professional medical lab background

High optical performance and stratum structure

The ECLIPSE Ni series is Nikon’s flagship upright system for research laboratories. According to Nikon’s documentation, the Ni‑E model boasts excellent optical performance and high system expandabilitytenmed.net. Its unique stratum structure allows simultaneous mounting of multiple optical paths, enabling separate control of an excitation filter cube turret and a barrier filter cube turret. This design provides flexibility for complex experiments.

Fully motorized control

The Ni‑E is a fully motorized microscope. It includes motorized focus with options for a focusing stage or focusing nosepiece. The focusing nosepiece configuration enables a fixed‑stage system suitable for in vivo imagingtenmed.net. A wide range of motorized accessories—XY stage, DSC zooming port, nosepiece, epi‑fluorescence cube turret and shutter—can be custom‑combined for different applications. Motorization not only speeds up operations but also reduces photobleaching by automatically controlling shutters and filterstenmed.net.

Confocal and multichannel imaging

When paired with Nikon’s confocal system, the Ni‑E’s high‑precision Z‑focus mechanism provides high‑resolution, high‑signal‑to‑noise imaging of three‑dimensional structurestenmed.net. The simultaneous multichannel imaging capability allows two cameras to capture different wavelengths without splitting the CCD chip, enabling high‑sensitivity Förster resonance energy transfer (FRET) and colocalization studiestenmed.net.

Automated imaging and reproducibility

The Ni‑E automatically adjusts brightness and optical settings when objectives change, optimizing the condenser, aperture, field diaphragm and ND filtertenmed.net. Observation conditions can be saved to buttons for rapid reproducibility. High‑precision motorized focusing with 0.025 µm resolution supports accurate Z‑series acquisition—critical when generating image stacks for 3D reconstructiontenmed.net.

Applications in research labs

These features make the Ni series ideal for fluorescence imaging, confocal microscopy, FRET analysis and digital pathology. Researchers can combine brightfield and fluorescence channels, perform automated scans and integrate with scanning or photostimulation devices. For example, some Nikon BioImaging Centers pair the Ni‑E with an A1R HD25 confocal scanner to conduct high‑resolution, high‑speed imaging of live tissues—a capability that is invaluable for neuroscience and developmental biology.

Si Series – Ergonomic Comfort for Routine Use

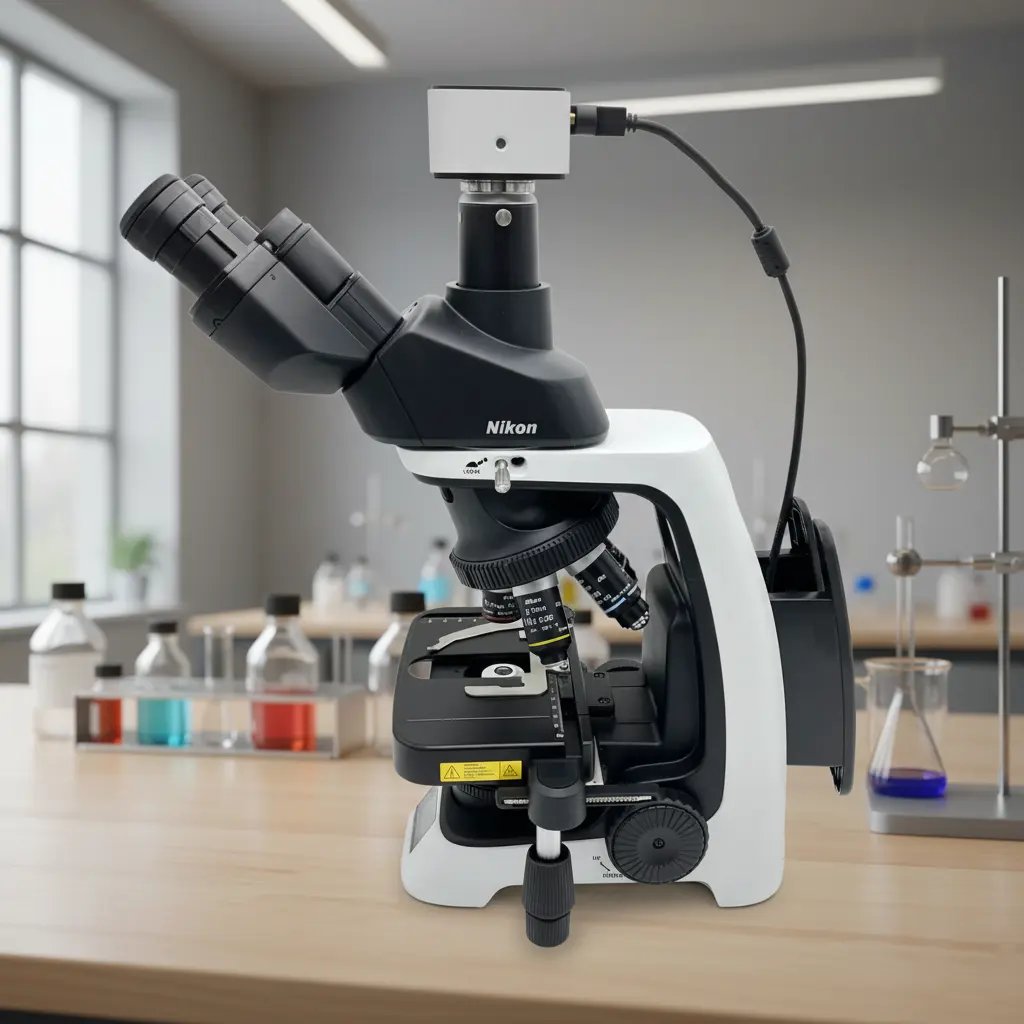

Nikon Eclipse trinocular microscope with digital camera module placed on a wooden laboratory bench, with reagent bottles and glassware in the background of a bright, modern lab.

The ECLIPSE Si series addresses the needs of users who spend many hours at the microscope. Nikon designed the Si to reduce physical strain and streamline common tasks. Its Light Intensity Management (LIM) remembers the light intensity set for each objective and automatically reproduces it when the objective is changedmicroscope.healthcare.nikon.com, reducing the time spent adjusting brightness by up to 40 % according to Nikon’s marketing.

Although the Si series shares many mechanical components with the Ci, its emphasis on ergonomics—adjustable observation tube, compact stage and intuitive controls—makes it well suited for teaching laboratories, clinical education and routine diagnostics.

Ui Series – Digital Imaging and Telepathology

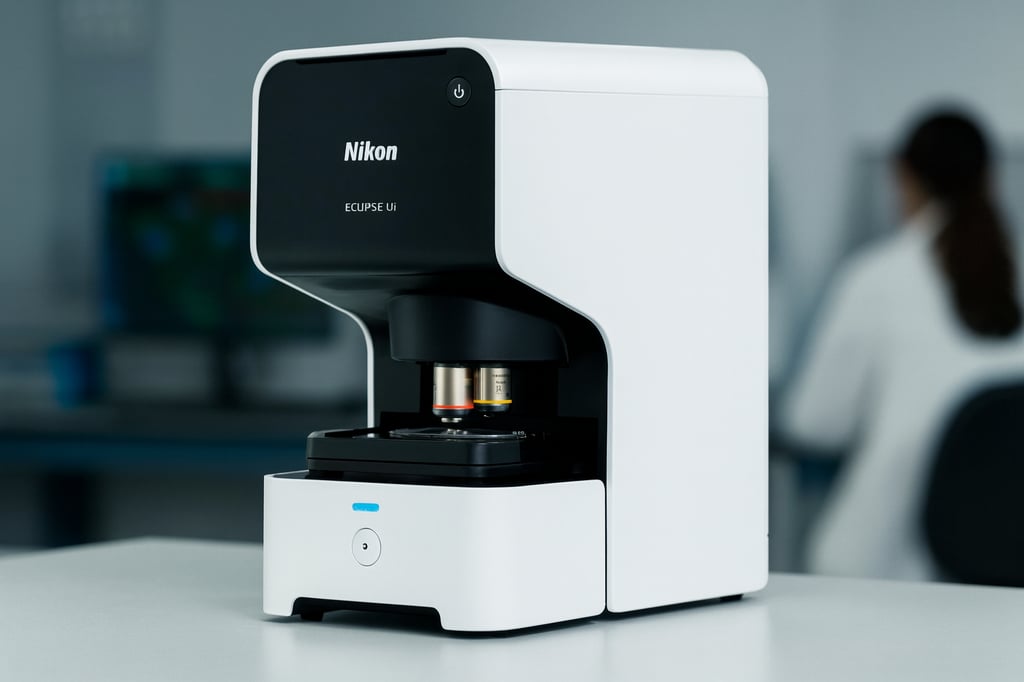

Nikon ECLIPSE Ui digital microscope on a clean lab bench in a modern medical laboratory, with a softly blurred background suggesting active clinical workflow.

Eyepiece‑less digital design

The ECLIPSE Ui is a digital upright microscope that eliminates eyepieces entirely. Instead, an integrated PC and high‑quality monitor display live images in real timemicroscope.healthcare.nikon.com. This design reduces operator eye fatigue and allows multiple users to view the screen simultaneously. Nikon’s CFI Plan Fluor objectives provide high numerical apertures and strong optical transmission for crisp, high‑resolution digital imagesmicroscope.healthcare.nikon.com.

Fast imaging and macro overview

The Ui is operational within 2.5 seconds of loading a sample, providing an immediate view. A macro‑imaging function captures a low‑magnification overview of the entire slide so that users can quickly locate regions of interestmicroscope.healthcare.nikon.com. This macro image can be zoomed digitally or saved for reference.

User‑friendly digital controls

All functions are controlled via an intuitive graphical interface. Users can change magnification, adjust focus or brightness, rotate images, annotate regions of interest and measure structures using on‑screen controlsmicroscope.healthcare.nikon.com. Color and contrast adjustments are accessible through slide bars, and digital zoom allows inspection of subcellular details without changing objectivesmicroscope.healthcare.nikon.com.

Alignment, automatic capture and tile view

Unique digital features enable objective and consistent observations. Alignment Mode displays two differently stained tissue samples side by side, automatically aligns them and allows users to navigate between corresponding regions with a single clickmicroscope.healthcare.nikon.com. Automatic Image Capture records the same observation points across different stains. Tile View shows up to 10 images simultaneously, facilitating comparative evaluation of multiple samples. Trace Display indicates previously viewed areas on a macro image, helping to prevent oversightmicroscope.healthcare.nikon.com.

Remote access for telepathology

The Ui’s Remote Mode allows authorized users to operate the microscope from a different locationmicroscope.healthcare.nikon.com. With a network connection and the appropriate contract, pathologists can load slides, focus, adjust magnification and review images in real timemicroscope.healthcare.nikon.com. This remote functionality makes the Ui particularly valuable for intraoperative consultations and for providing expert opinions in areas facing pathologist shortages. When combined with alignment and tile view features, remote users can perform thorough comparative diagnoses without visiting the physical lab.

Updates and improvements (Versions 1.3 and 1.4)

Nikon regularly updates the Ui to meet clinical demands. The version 1.3 update introduced a high‑definition overview display and digital zoom that quickly locates lesions and displays a magnified overview with image quality three times higher than conventional imagesmicroscope.healthcare.nikon.com. It also added automatic image capture in Alignment Mode, allowing comparative observations of differently stained specimens by registering observation points and automatically imaging them. Faster autofocus speeds and orientation adjustment further streamline observation workflows.

The version 1.4 update (released in 2025) added Tile View and Layer View. Tile View records up to 20 images in succession and displays up to 10 images on one screen, while Layer View allows switching between images of the same location stained with different methodsmicroscope.healthcare.nikon.com. Remote mode functions were enhanced to support efficient telemedicine and collaboration. These updates demonstrate Nikon’s commitment to continuous improvement and adapting to user feedbackmicroscope.healthcare.nikon.com.

Ti2 Series – Inverted Microscopes for Advanced Applications

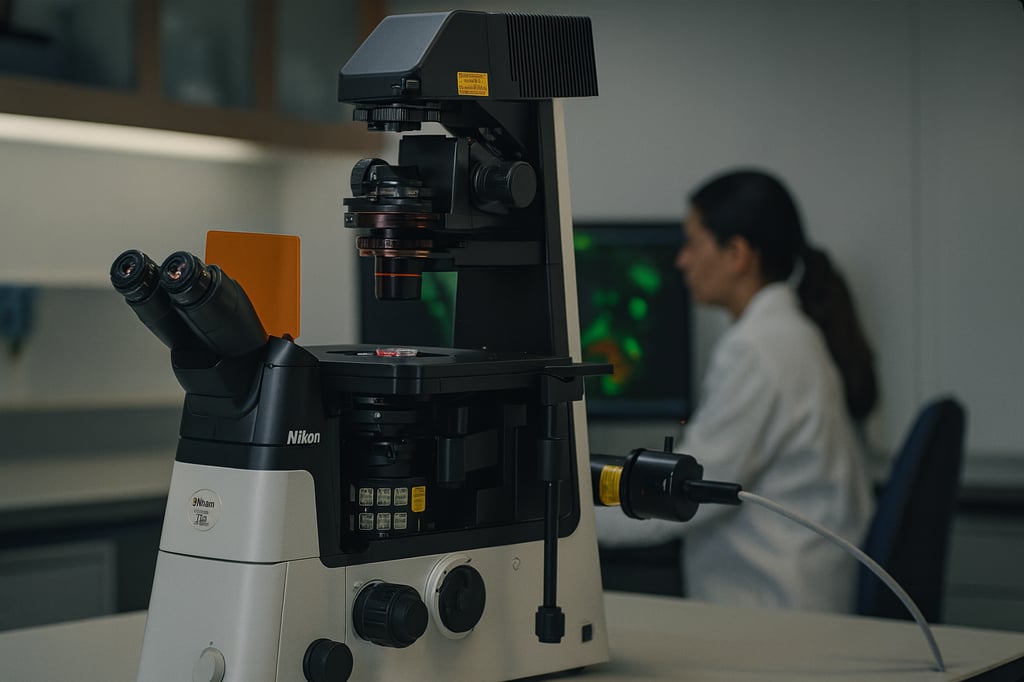

Nikon Ti2 series inverted fluorescence microscope on a lab bench in a modern medical laboratory, with a blurred scientist and monitor in the background.

Ti2‑E and general Ti2 features

Nikon’s Ti2 series inverted microscopes are widely used for live‑cell imaging and multiphoton experiments. The large 25 mm field of view and high‑NA optics enable bright, uniform images across large samples. Motorized controls and software integration allow researchers to automate complex imaging routines, combine transmitted and fluorescence channels and perform long‑term time‑lapse experiments. The Ti2’s stability and expandability make it a common platform for high‑content screening and confocal microscopy.

Ti2‑I: Optimized for IVF and IMSI

The ECLIPSE Ti2‑I is a specialized motorized inverted microscope designed for intracytoplasmic sperm injection (ICSI) and intracytoplasmic morphologically selected sperm injection (IMSI). Its release note states that the Ti2‑I reduces the steps required for microscope operation in IVF by about 75 %, consolidating multiple observation settings into simple controlsmicroscope.healthcare.nikon.com. Users can switch observation modes with a single button, dramatically speeding up workflows in procedures that demand frequent changes.

A touch screen displays the selected observation method and alerts users to setting errorsmicroscope.healthcare.nikon.com. Nikon’s light intensity management function automatically records and reproduces brightness settings when switching magnifications. The Ti2‑I’s optical system uses circularly polarized light to display the spindle in color in all directions, allowing embryologists to monitor the spindle during injection and avoid damaging itmicroscope.healthcare.nikon.com. Improved brightness and high‑quality objectives provide clear views of transparent oocytes and sperm.

For IMSI, 60× and 100× objectives reveal fine structures such as vacuoles in the sperm headmicroscope.healthcare.nikon.com. Nikon Advanced Modulation Contrast (NAMC) observation enables high‑contrast imaging even in plastic dishes. Ergonomic features include an adjustable eyepiece height, touch‑panel mode switching (usable with gloves), an intermediate magnification switching knob, long‑life LED illumination and built‑in control buttons for a space‑saving footprint. Collectively, these features make the Ti2‑I a powerful tool for reproductive medicine.

Step‑by‑Step Digital Workflow with the Nikon ECLIPSE Series

1. Sample preparation and loading – Tissue or cytology samples are prepared on slides and labeled with barcodes. For the Ui, slides can be loaded with one hand; the system reads the barcode for efficient sample controlmicroscope.healthcare.nikon.com.

2. Initial overview – On Ci and Ni microscopes, users view the sample through eyepieces or on an attached camera. On the Ui, a macro image is automatically captured within seconds to display the entire slide, enabling quick orientation.

3. Magnification and focus – Users select objectives on the Ci or Ni, relying on motorized nosepieces and LIM to maintain brightnessmedicalexpo.com. The Ui uses digital zoom and an auto‑focus function to achieve sharp focus in 2.5 secondsmicroscope.healthcare.nikon.com. For Ti2‑I, observation mode buttons instantly adjust optical settings for ICSI/IMSI.

4. Imaging and analysis –

On the Ci, images are captured via a camera and Nikon’s NIS‑Elements software automates exposure and white balance.

The Ni‑E combines motorized accessories and confocal scanning for high‑resolution 3D imagingtenmed.net.

The Ui allows real‑time viewing, digital zoom, side‑by‑side alignment of differently stained specimens and automatic capture of registered observation points.

On the Ti2‑I, observation modes for oocyte assessment, spindle observation or sperm injection are selected via a touch screen; brightness and magnification are controlled automaticallymicroscope.healthcare.nikon.com.

5. Remote consultation and collaboration –

The Ui’s Remote Mode enables pathologists or physicians to control the microscope remotely, share the same view and even operate focusing and positioning functionsmicroscope.healthcare.nikon.com. This supports intraoperative consultations and second opinions without transporting slides.

For other series, digital cameras and streaming software can transmit images to remote colleagues. Nikon BioImaging Centers also provide remote access to Ni and Ti systems for contract research and training.

6. Storage and reporting – Digital images and metadata are stored in laboratory information systems. Automatic alignment and trace functions in the Ui ensure that observed areas are recorded, improving reproducibilitymicroscope.healthcare.nikon.com. Reports can include annotated images with measurements and can be shared with clinicians for patient management.

Real‑World Applications and Benefits

Addressing pathologist shortages and regional disparities

Remote digital microscopes like the ECLIPSE Ui help mitigate pathologist shortages. In remote Canadian regions, a shortage of sub‑specialized professionals and recruitment difficulties hindered histopathology servicespmc.ncbi.nlm.nih.gov. Digital pathology allowed specialists at urban centres to provide consultations for remote hospitals, reducing costs and accelerating diagnosespmc.ncbi.nlm.nih.gov. The Ui’s remote access, alignment mode and tile view facilitate such collaborations, enabling multiple physicians to review slides simultaneously and make joint decisions.

Improving workflow efficiency

Motorized switching, automatic light management and digital integration reduce time spent on routine tasks. For example, the Ti2‑I reduces operational steps by up to 75 % in IVF workflowsmicroscope.healthcare.nikon.com. The Ci’s LIM and motorized nosepiece ensure consistent brightness when switching objectivesmedicalexpo.com. Such automation speeds up slide review and reduces eye strain, ultimately improving laboratory throughput and accuracy.

Enhancing diagnostic accuracy

High‑quality optics and digital features improve diagnostic confidence. The Ni‑E’s simultaneous multichannel imaging allows independent optimization of two channels for FRET or colocalization studiestenmed.net. The Ui’s macro and zoom functions capture high‑definition images and allow users to quickly locate lesions with three‑times higher resolution than conventional images. Digital alignment and automatic image capture ensure that identical regions are compared across stains, reducing variabilitymicroscope.healthcare.nikon.com.

Telemedicine and remote consultations

Modern digital slide scanners and microscopes eliminate traditional barriers to remote pathology. A 2025 article noted that digital microscope scanners enable high‑resolution imaging without physical slide transportation; pathologists can provide expert consultations from anywhere, reducing turnaround times and operational costsgrundium.com. The same article emphasised that high‑resolution digital images facilitate collaborative diagnosis and advanced analysis, improving diagnostic accuracy. Nikon’s Ui and updated software versions integrate these principles by supporting remote operation and multi‑sample comparisonmicroscope.healthcare.nikon.com.

Reproductive medicine

In assisted reproductive technologies, microscopes must provide excellent optics and intuitive controls. The Ti2‑I displays the spindle in color and allows embryologists to adjust contrast and magnification with one touchmicroscope.healthcare.nikon.com. Its motorized observation mode switching reduces workflow steps, aiding time‑sensitive IVF procedures. Such features help embryologists avoid damaging delicate structures and improve fertilization success rates.

Education and training

The Ui’s eyepiece‑less design allows multiple students or clinicians to view the same screen, making it ideal for teaching. Alignment mode and tile view facilitate comparative learning with differently stained slides. FrediTech’s article on digital microscopy also highlights that digital microscopes allow instant sharing of images, remote connectivity and AI integration, enhancing telemedicine and educational opportunitiesfreditech.com. Laboratories can integrate these microscopes into online training platforms or remote workshops.

Emerging Trends and Future Directions

AI‑assisted diagnostics

Digital pathology paves the way for artificial intelligence. Modern digital cytopathology, for example, uses computer‑aided tools to improve diagnostic accuracy by providing objective measurements to support pathologists’ interpretationsprecipoint.com. Automated image analysis reduces inter‑observer variability and improves consistencygrundium.com. Nikon’s digital microscopes produce high‑quality, standardized images suitable for AI algorithms. Future versions may integrate AI‑powered detection to highlight regions of interest or provide preliminary diagnoses, as other digital scanners already do.

Compact and affordable slide scanners

Companies like Grundium are developing compact digital slide scanners that offer high‑resolution imaging at a lower cost, democratizing access to digital pathologygrundium.com. These innovations enable smaller laboratories and resource‑limited clinics to adopt digital workflows. Nikon’s ECLIPSE Ui has a compact footprint and built‑in computermicroscope.healthcare.nikon.com, aligning with this trend. Integration between compact scanners and remote microscopes could create end‑to‑end digital solutions.

Sustainability and low‑energy illumination

LED eco‑illumination in the Ci and Si series reduces power consumption and eliminates hazardous lamp disposalmedicalexpo.com. As laboratories strive for greener operations, LED technology and long‑life components become increasingly important. Nikon continues to refine its illumination systems to provide uniform brightness while minimizing environmental impact.

Multi‑modal imaging and cross‑platform integration

Researchers often combine different imaging modalities—brightfield, phase contrast, fluorescence, confocal and super‑resolution—to gain comprehensive insights. The Ni’s modular design allows integration of confocal scanners and photostimulation devicestenmed.net. Future expansions may include integration with super‑resolution techniques (e.g., SIM, STORM, MINFLUX) and advanced detectors such as Nikon’s new NSPARC confocal upgrades. Cross‑platform compatibility with digital imaging software and AI analytics will be key to harnessing these modalities.

Conclusion

The Nikon ECLIPSE series represents a comprehensive family of microscopes engineered for diverse laboratory needs. From the clinical Ci with eco‑friendly illumination and intuitive motorization to the research‑grade Ni with modular architecture and confocal compatibility, Nikon provides tools that streamline workflows and enhance imaging performance. The Si series prioritizes ergonomics, while the Ui pioneers digital microscopy with real‑time imaging, automatic alignment, tile view and remote operation. The Ti2 and Ti2‑I inverted microscopes bring powerful features to live‑cell imaging and reproductive medicine, reducing procedural steps and improving clarity.

In an era marked by a shortage of pathologists, increasing workloads and the need for remote collaboration, digital microscopy is no longer optional—it is essential. High‑resolution digital imaging enables telepathology, collaborative diagnosis and AI‑assisted analysis, overcoming geographic barriers and improving patient carepmc.ncbi.nlm.nih.govgrundium.com. Nikon’s commitment to continual improvement, reflected in software updates and new products, ensures that laboratories can adapt to evolving challenges and harness cutting‑edge technology.

For readers interested in implementing digital microscopy or learning more about advanced imaging, explore FrediTech’s guides on digital microscopes and advanced imaging techniques for additional insights. By embracing the Nikon ECLIPSE series and integrating digital workflows, medical laboratories can enhance efficiency, collaboration and diagnostic accuracy, positioning themselves at the forefront of modern healthcare.

FAQ

What makes the Nikon ECLIPSE series suitable for medical laboratories?

Nikon’s ECLIPSE microscopes combine high‑quality optics with motorized controls, ergonomic design and digital integration. Features like eco‑illumination, Light Intensity Management, motorized nosepieces and digital alignment modes reduce eye strain and speed up routine tasks. Models like the Ui support remote operation, making them ideal for telepathologymicroscope.healthcare.nikon.com.

How does the ECLIPSE Ui facilitate remote pathology?

The Ui has an integrated PC and monitor, eliminating eyepieces and enabling multiple users to view images simultaneouslymicroscope.healthcare.nikon.com. Its Remote Mode allows authorized users to load slides, focus, adjust magnification and capture images from anywhere with a network connection. Alignment, automatic image capture and tile view functions streamline comparative observations across different stains.

What is Light Intensity Management (LIM)?

LIM is a feature that records the brightness setting for each objective and automatically reproduces it when the objective is changed. This prevents sudden changes in brightness, reduces eye strain and saves time. LIM is available in the Ci and Si series and is integrated into other models like the Ti2‑Imicroscope.healthcare.nikon.com.

How does the Ni series support complex imaging techniques?

The Ni’s stratum structure allows simultaneous mounting of multiple optical paths and motorized fluorescence attachmentstenmed.net. High‑precision Z‑focus supports confocal imaging of 3D structures, while simultaneous multichannel imaging enables independent capture of two wavelengths for FRET or multicolor experiments. Automated control ensures reproducible imaging conditionstenmed.net.

How does the Ti2-I improve IVF workflows?

The Ti2‑I consolidates multiple observation settings into a single button press, reducing operational steps by up to 75 %microscope.healthcare.nikon.com. It uses circularly polarized light to display the spindle in color from all directions, helping embryologists avoid spindle damage. Bright illumination and high‑quality objectives provide clear views of oocytes and sperm, and motorized controls minimize manual adjustmentsmicroscope.healthcare.nikon.com.

What advantages does digital cytopathology offer over conventional microscopy?

Digital cytopathology improves efficiency, accuracy and collaboration by converting microscopic images into digital files that can be analysed and shared instantlyprecipoint.com. High‑resolution images allow subtle cellular changes to be recognized, and computer‑aided tools provide objective measurements, reducing inter‑observer variabilityprecipoint.com. These benefits are especially valuable in settings with pathologist shortages or when specialists need to collaborate across distances.

How do digital microscope scanners transform remote consultations?

Advanced digital slide scanners eliminate the need to ship physical slides, enabling high‑resolution images to be shared instantly. This speeds up consultations, reduces logistical challenges and allows specialists to pool expertise for more accurate diagnosesgrundium.comgrundium.com. Nikon’s Ui and software updates adopt these principles by integrating tile view, alignment and remote control featuresmicroscope.healthcare.nikon.com.

Are Nikon ECLIPSE microscopes suitable for education and training?

Yes. The Ui’s screen‑based design allows groups of students to view the same sample simultaneously, and features like alignment mode aid comparative learning. FrediTech’s article on digital microscopy notes that digital systems enable instant image sharing, advanced analysis and remote connectivityfreditech.com, making them ideal for tele‑learning and online workshops.

How can laboratories integrate AI with Nikon’s microscopes?

Nikon’s digital microscopes produce standardized, high‑quality images that are compatible with AI algorithms for tasks such as cell counting, anomaly detection and segmentation. The growing field of digital cytopathology uses computer‑aided tools to provide objective measurements and improve diagnostic accuracyprecipoint.com. Future software updates may integrate AI modules directly into Nikon’s platforms, enabling real‑time analysis during observation.

Author: Wiredu Fred is a biomedical equipment specialist and tech writer. With more than a decade of experience in laboratory technology, he focuses on translating complex medical imaging concepts into practical insights for researchers, clinicians and students. Wiredu contributes regularly to FrediTech’s medical technology blog, where he explores innovations in microscopes, digital pathology and telemedicine.
