Applications of Microscopy in Medical Laboratories: A Detailed Overview

Introduction

Microscopy – the art of viewing tiny structures – is indispensable in today’s medical laboratories. By magnifying cells and microbes far beyond the naked eye, microscopes enable definitive disease diagnoses and research breakthroughsexcedr.com. For example, they allow scientists to observe bacteria, viruses, fungi and blood cells in great detail, helping clinicians understand how these agents cause diseaseexcedr.com. From a basic optical microscope for routine blood smears to advanced electron and digital systems in pathology, microscopes underlie many lab tests. In this overview we’ll survey all major clinical uses of microscopy across lab specialties, explain key microscope types and features, and highlight recent innovations (like digital/AI-assisted systems) shaping the future of lab diagnosis. Real-world examples and reliable sources are cited throughout. See also our Complete Guide to Digital Microscopy; for an in-depth look at camera-based microscopyfreditech.com.

{getToc} $title={Table of Contents} $count={Boolean} $expanded={Boolean}

---

Types of Microscopes Used in Medical Labs

Medical labs use a variety of microscopes, each suited to different samples and diagnostics. Key categories include:

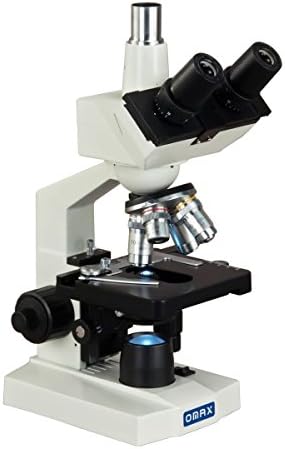

• Optical (Brightfield) Microscopes: The standard compound light microscope uses visible light and glass lenses. It’s used for stained tissue sections (histology), blood and body fluid smears, microbiology stains (Gram, acid-fast), and cytology (e.g. Pap smears). Brightfield microscopes with binocular heads are common in pathology, hematology and microbiology labsblockscientific.com. They often have multiple objective lenses (4×–100× oil) to vary magnification. Routine exams – such as a Gram-stained culture or a peripheral blood smear – involve placing a slide on the stage, adjusting focus, and visually identifying cells or organisms. For example, a hematology lab tech uses brightfield microscopy to examine red and white cells under oil immersion, identifying anemia or infectionsandalab.netblockscientific.com.

• Phase-Contrast and Darkfield Microscopes: Many specimens (e.g. live cells, sperm, spirochetes) are transparent and hard to see in brightfield. Phase-contrast microscopes convert subtle phase shifts into contrast, making unstained cells visible. This is invaluable in cell-culture labs (monitoring live cell growth) and semen analysis. Darkfield microscopy (angled light) highlights spirochetal bacteria and other minute objects. The CDC notes that U.S. CLIA regulations permit certain moderate-complexity tests using brightfield or phase-contrast microscopescdc.gov – underscoring how common they are in labs. Example: In a fertility clinic, semen samples are examined with phase-contrast optics to count and grade sperm motility (live sperm appear bright on a dark background). In urinalysis, phase-contrast often helps spot urinary casts that are nearly transparent.

• Fluorescence Microscopes: These use high-intensity light to excite fluorescent dyes or antibodies bound to specific cellular components. In medicine, fluorescent microscopy is crucial for detecting antigens or DNA in cells. For example, immunofluorescence is used to identify certain kidney or skin autoimmune diseases, and the presence of pathogens like Legionella or certain viruses in tissue. In virology labs, fluorescent antibody tests reveal viral inclusions. Pathologists also use fluorescent stains (IHC with fluorescence) to highlight tumor markers. Fluorescence is especially powerful when combined with confocal microscopy (laser scanning) for sharp 3D images of tissues, though confocals are mostly in research or reference labs.

• Electron Microscopes (EM): When resolution beyond light’s ~200 nm limit is needed, transmission (TEM) or scanning (SEM) electron microscopes are used. EM uses beams of electrons to image ultrastructure. In clinical pathology, TEM is sometimes applied to kidney or muscle biopsies (to see organelles like podocyte foot processes or muscle fibrils) and to detect viruses (e.g. adenovirus or coronavirus morphology). SEM might examine kidney stones or tissue surfaces. As the Fortis Medical Lab blog notes, “Electron microscopes are often used to visualize objects such as microorganisms and crystal structures, which are too small to be imaged with an optical microscope”fortis.edu. For instance, TEM can definitively show the coronavirus size in infected tissue or detail the glomerular basement membrane in nephrology.

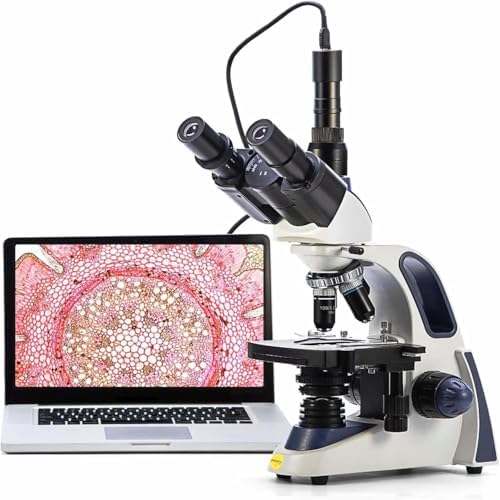

• Digital and Virtual Microscopes: Increasingly, microscopes integrate digital cameras and software. Digital microscopes replace the eyepiece with a high-resolution camera, projecting the image onto a screenfreditech.com. Whole-slide imaging (virtual microscopy) uses scanners to digitize entire glass slides at high resolution. This enables pathologists to view, annotate and share slides electronically – a practice known as digital pathology. The CDC PPM page even highlights that labs use computers for remote analysis under CLIA rulescdc.gov. For example, a hospital lab can scan biopsy slides overnight so a pathologist in another city reviews them by morning. Internal studies show this speeds diagnosis: one Canadian hospital cut biopsy turnaround from 4 days to 2 by going digitalfreditech.com. (See “Innovations” below.)

Clinical Applications by Lab Specialty

Below we outline how different medical lab disciplines use microscopy day-to-day:

• Pathology & Cytology: In histopathology, tissue biopsies (from skin, breast, colon, etc.) are fixed, sliced into thin sections (microtomy), stained (e.g. H&E, special stains) and examined microscopically. Pathologists look for tumor cells, inflammatory patterns, or pathogens. Step-by-step example: A skin biopsy is first fixed in formalin, embedded in paraffin, sectioned on a microtome, and stained with hematoxylin & eosin. Under the microscope, the pathologist adjusts 4×/10× to scan the tissue, then 40× to inspect cell details. They might spot malignant melanoma cells with atypical nuclei. Techniques like immunohistochemistry (special stains under light or fluorescence) further identify cell markers (e.g. hormone receptors in breast cancer). Clinical cytology (e.g. Pap smears, body fluid cytology) also relies on brightfield microscopy: cells scraped from the cervix are stained and examined for dysplasia, and body fluid sediments are checked for malignant cells or infections. As a source notes, “Pathologists analyze biopsies and body fluids using microscopy… to identify malignancies, infections, and other abnormalities,” providing definitive diagnosesandalab.net.

• Hematology and Blood Analysis: Microscopy is central for evaluating blood. A peripheral blood smear is stained (e.g. Wright-Giemsa) and reviewed under oil-immersion (100×) to count and classify red and white cells and platelets. Hematologists look for anemia (e.g. sickle cells, hypersegmented neutrophils in megaloblastic anemia), leukemias (abnormal blasts), malaria or Babesia parasites within RBCs, and platelet clumping. Bone marrow aspirates (stained smears) are also examined to assess blood cell precursors. As Andalab Medical Labs explains, “Microscopic analysis [in hematology] is used to evaluate cell counts, morphology, and detect abnormalities such as anemia, infections, or hematologic malignancies”andalab.net. For example, detecting malarial parasites in a thick blood film under the microscope still guides tropical medicine treatment in many settings. Laboratories also scan slides for leukoerythroblastic pictures (immature cells) and determine if manual correction of automated counts is needed.

• Microbiology and Parasitology: Cultures and direct smears in microbiology rely on microscopy. After bacterial cultures grow, Gram-stained slides are observed to see bacterial shapes (cocci vs. rods) and Gram reaction, guiding antibiotic choice. Acid-fast stains (e.g. Ziehl-Neelsen) require oil-immersion to find Mycobacterium tuberculosis in sputum. Fungal elements are spotted with KOH or silver stains. Parasites are directly seen in wet mounts or stained smears: malaria (Plasmodium) ring forms in RBCs, Giardia in stool, Schistosoma eggs or filaria in blood. For viral detection, optical microscopes are rarely used (viruses are too small), but EM can visualize virus particles in specialized labs. A vendor site notes that medical microscopes “enable detection of parasites and bacteria in blood, feces, and urine”blockscientific.com. Example: In a diarrheal illness, a microbiologist mounts a stool sample with iodine stain; under the microscope they identify Giardia cysts or Entamoeba histolytica trophozoites.

• Immunology and Serology: While much immunology uses automated assays, microscopy has roles in immunology labs. Direct and indirect immunofluorescence microscopy tests antibodies in patient serum. For example, an ANA (antinuclear antibody) test uses fluorescent-tagged anti-human antibodies; under a fluorescence microscope, nuclei glow if autoantibodies are present. In pathology, immunofluorescent staining of kidney biopsies reveals immune complex deposits. Microscopes are also used in flow cytometry labs during validation of cell sorting (though the counting itself is done by machines, not microscopy). Nonetheless, microscopy helps confirm cell suspensions (checking aggregates) and performing manual slide immunostains.

• Urinalysis and Body Fluids: Many labs examine urine sediment under brightfield/phase contrast microscopesncbi.nlm.nih.gov. After centrifuging urine, technicians look at the sediment to find red/white cells, epithelial cells, casts (hyaline, red cell casts, etc.), and crystals (oxalate, uric acid crystals). This helps diagnose kidney stones (crystal type indicates stone chemistry) or glomerular inflammation (red casts). As StatPearls describes, a urine sample is spun and the drop examined at multiple magnifications to identify sediment componentsncbi.nlm.nih.gov. For example, seeing birefringent calcium oxalate crystals under polarized light confirms hyperoxaluria. Similarly, cerebrospinal fluid (CSF) and other body fluids are checked microscopically for cells, bacteria, or malignant cells (in effusions).

• Genetics (Cytogenetics): In a cytogenetics lab, metaphase chromosome spreads are viewed under a microscope for karyotyping. Whole chromosomes are stained (G-banding) to check for trisomies or translocations. While much has shifted to molecular methods, traditional chromosome counts still rely on light microscopy.

• Forensic and Other Uses: Although beyond clinical diagnostics, forensic labs use microscopes to examine tissue in autopsies, blood smears for evidence, and fibrous material. Food and environmental testing labs may also employ microscopes to identify contaminants. Even veterinary clinics use medical microscopes on animal specimensblockscientific.com, illustrating the broad reach of these tools.

Innovations and Digital Trends in Microscopy

Modern microscopy is rapidly evolving. Key trends and technologies include:

• Digital Pathology and Telepathology: High-resolution slide scanners now convert glass slides into digital images (whole-slide imaging). Pathologists can review cases on-screen, annotate them, and share with colleagues anywhere. This enables telepathology: remote diagnosis and consultations. For example, a remote hospital in Northern Ontario digitized all biopsy slides so specialists in cities could interpret them, halving turnaround time (4→2 days) and saving hundreds of thousands of dollars annuallyfreditech.com. The global digital pathology market is surging: Biospace reports it was $1.11 B in 2024 and is projected to reach $2.43 B by 2034 (CAGR ~8.1%)biospace.com. This growth is driven by AI integration, shortage of pathologists, and demand for faster, collaborative workflowsmarketsandmarkets.com freditech.com. Many of our own [Complete Guide to Digital Microscopy] covers these topics, including technical foundations of whole-slide imaging.

• Artificial Intelligence (AI) and Computational Imaging: AI and machine learning algorithms are increasingly applied to microscope images. In pathology, AI can flag suspicious cells on a digital slide, count cell types, or grade tumors. Preclinical tools analyze blood cell differentials automatically from smear images. AI-powered smartphone apps have even been developed to quantify cells or parasites (e.g., a device to count malaria parasites in a blood film). One example outside the lab: a “CellScope” smartphone microscope uses video and AI to detect and count parasitic worms in a drop of bloodmedtecheurope.org. This enabled field workers in Africa to rapidly diagnose filarial diseases, without needing a full lab. In laboratory settings, AI-enabled image analysis (as evidenced by a pathology market growth of ~15% CAGR) is becoming part of routine workflowsfreditech.com. Emerging techniques, like AI-driven fluorescence microscopy, also promise faster multi-marker imaging.

• Portable and Smartphone Microscopy: Advances have miniaturized microscopes for point-of-care use. Portable digital microscopes, often USB-connected, can be used in small clinics or remote sites. Attachable lenses turn smartphones into microscopes for field diagnostics. For instance, the CellScope described above showed that a mobile phone can become a microscope for parasite detectionmedtecheurope.org. In low-resource settings, such devices can screen blood for malaria or filaria, or even perform Pap smears via teleconsultation. The trend toward smartphone microscopes makes microscopy more accessible worldwide.

• Advanced Imaging Modalities: Techniques once confined to research are trickling into specialized clinical use. Confocal and multi-photon microscopes provide high-resolution 3D views of tissues, useful in research hospitals. Polarization microscopy is standard in some labs (e.g. analyzing gout crystals or muscle fibers). Researchers are developing slide-free imaging methods (like light-sheet or quantitative phase imaging) that might one day let pathologists see tissue architecture without glass slidesfreditech.com. Such innovations could speed histology prep and integrate microscopy with genomics.

• Connectivity and 5G: Fast networks and cloud storage allow instant sharing of large image files. Some companies offer cloud-based microscopy platforms where slides are stored and annotated online. In future, 5G and 6G networks may enable real-time streaming of microscope images to specialists anywhere. This is part of the broader “digital lab” movement linking imaging systems to hospital databases (LIS systems).

• Workflow Automation and Integration: Many modern microscopes come with motorized stages and autofocus for automated scanning of multiple fields or tiling of large samples. Image analysis software can automatically measure distances, count cells, or detect anomalies. For example, digital microscopes often include calibration tools to measure cell diameters or tissue areas with precision. Integration with lab information systems means images can be tagged to patient IDs for streamlined reporting.

• Educational Outreach: Digital and video microscopy has also transformed training. Instructors can display live microscope views to a classroom or via web streaming. Lower-cost digital scopes make it easier for students and citizen scientists to explore microscopy. This is a trend we’ve seen: novices can “obtain images faster than with traditional microscopes”freditech.com because of on-screen viewing and user-friendly interfaces.

Despite these innovations, basic optical microscopy remains the workhorse in most clinical labs due to its simplicity and proven reliability. However, trends like AI and digital sharing are reshaping how labs operate.

Advantages and Limitations of Modern Microscopy

Modern microscopes offer powerful benefits:

• Enhanced Visualization and Documentation: Digital systems capture high-resolution images for reports and teachingfreditech.com. Multiple users can view simultaneously on screens (ergonomically better than peering through eyepiecesfreditech.com). Images can be annotated, measured and stored indefinitely.

• Improved Workflow: Automated scanning and image stitching speed up analysis. Pathologists can review slides remotely, reducing turnaround. Digital slides enable second opinions without shipping glass. The reduction in manual handling also reduces human errorfreditech.com.

• Expanded Capabilities: Advanced optics (fluorescence, confocal, EM) reveal details not visible otherwise. AI tools can detect patterns invisible to the eye. Microscopy now interfaces with genomic and proteomic data for more comprehensive diagnostics.

However, there are limitations:

• Cost: High-end microscopes and scanners are expensive. A top digital microscope system can cost $10,000–$100,000 or morefreditech.com. For smaller clinics or labs in developing countries, this initial investment can be prohibitive. Even basic research-grade microscopes are significant purchases requiring maintenance. Resource-limited labs often rely on older analog microscopes.

• Technical Requirements: Digital microscopes need computers, power and often complex softwarefreditech.com. Staff must be trained in image acquisition and processing. Large digital images require robust data storage and IT supportfreditech.com. Ensuring consistent image quality and calibration (e.g. lighting uniformity, color balance) adds complexity.

• Depth Perception and Image Interpretation: Two-dimensional images can make it harder to appreciate 3D structures; stereo microscopes provide better depth cues. Automated analyses can sometimes misinterpret artifacts, so expert oversight is still needed.

• Regulatory and Standardization: Especially in digital pathology, validating that a scanned image is diagnostically equivalent to looking down a microscope eyepiece is an ongoing challenge. Standards for image quality and AI validation are still evolvingfreditech.com.

In summary, microscopy continues to be a foundational diagnostic tool, augmented by digital and AI technologies. Balancing innovation with practicality is key: labs must weigh improved capabilities against cost and training demands.

Conclusion

Microscopy in medical laboratories spans a broad spectrum – from the classic light microscope in a small clinic to the latest digital pathology workstation in a major hospital. It underpins disciplines like pathology, hematology and microbiology, enabling clinicians to see the unseen and make critical diagnoses. Advances such as whole-slide imaging, AI analysis, and portable microscopes are expanding access and efficiency. At the same time, standard brightfield and phase-contrast techniques remain essential for routine tests (blood smears, urine sediments, culture stains, etc.)andalab.netncbi.nlm.nih.gov. Moving forward, we expect continued integration of AI-driven image analysis, telemedicine connectivity, and new imaging modalities (e.g. slide-free methods) to further revolutionize lab medicine. By understanding these applications and trends, healthcare professionals can leverage microscopy’s full power to improve patient care and laboratory workflowsexcedr.com freditech.com.

FAQ

What types of microscopes are commonly used in medical labs?

Most clinical labs use brightfield optical microscopes (for stained slides), along with phase-contrast (for live cells, semen analysis) and fluorescence microscopes (for immunofluorescent assays). Specialized labs may use confocal or electron microscopes for high-resolution imaging. Digital microscopes with cameras are also increasingly common. (For example, CLIA-certified clinics routinely perform tests with brightfield or phase-contrast microscopescdc.gov.)

How is microscopy used in diagnosing diseases?

Microscopy is key in diagnosing infections (identifying bacteria, fungi, parasites), blood disorders (examining red/white cell morphology for anemia or leukemia), cancers (pathologists examining biopsy tissues), kidney diseases (detecting casts or crystals in urine), and many others. For instance, a pathologist can identify cancer cells in a biopsy under the microscope, while a microbiologist can spot Malaria parasites in a blood smear. These observations directly guide clinical treatment.

What is digital pathology and how does it help?

Digital pathology involves scanning glass slides into high-resolution digital images. Doctors view and analyze these on computers instead of traditional eyepiecesfreditech.com. This allows remote consultations (telepathology), image sharing, and AI analysis. It has been shown to speed up diagnoses and improve collaboration. For example, one lab reduced biopsy turnaround from 4 days to 2 by adopting digital slides and telepathologyfreditech.com. Digital systems also facilitate teaching and archiving of cases.

How is AI transforming microscopy in labs?

AI algorithms can automatically detect patterns in microscope images that may be subtle or time-consuming for humans. In hematology, AI can pre-classify cells on a blood smear; in pathology, AI can flag areas of tissue likely to contain cancer. The AI-in-pathology market is projected to grow rapidly (e.g. ~15% annually)freditech.com, reflecting this trend. While AI assists diagnosis, pathologists still review the images; it serves as a powerful aid rather than a replacement.

What are the advantages of digital microscopes over traditional ones?

Digital microscopes let multiple users view the same image simultaneously on a screen (improving ergonomics and collaboration), and they automatically capture and store imagesfreditech.com. They often include measurement and annotation tools. Electronic images can be easily included in reports and shared for remote consultations. However, high-end digital systems are more expensive and require computer supportfreditech.com.

Can microscopes be used in the field or low-resource settings?

Yes. Recent innovations have made low-cost and portable microscopes practical for field use. For example, researchers created a smartphone-based microscope (the “CellScope”) that automatically detects parasitic worms in a drop of bloodmedtecheurope.org. Such devices use a phone camera plus a simple lens mount, and often incorporate AI apps. These tools bring microscopy to clinics without full lab infrastructure.

Why are both brightfield and phase-contrast microscopy mentioned in guidelines?

CLIA regulations explicitly include brightfield and phase-contrast microscopes for certain procedurescdc.gov. Brightfield is used for stained specimens (cells and microbes), while phase-contrast provides contrast for unstained, living samples (cells in culture or semen). Both are fundamental in diagnostics: for instance, urine casts may be examined with phase-contrast to see transparent elements betterncbi.nlm.nih.gov.
