Introduction

Confocal microscopy remains a cornerstone of modern biomedical research. By rejecting out‑of‑focus light, confocal systems produce sharp, optical sections of three‑dimensional structures that would otherwise require laborious physical sectioning. The Nikon A1 series of confocal microscopes, launched over a decade ago and continuously updated, has become a workhorse in cell biology, neuroscience, cancer research and high‑content screening laboratories across the world. Unlike traditional wide‑field microscopes, the A1 confocal collects fluorescence only from the focal plane using pinholes and high‑precision scanners, allowing researchers to image cells and tissues with sub‑micron resolution while minimizing photobleaching and phototoxicityburke.weill.cornell.edu. Recent upgrades like the A1R HD25/HD25 A1R include a ground‑breaking 25 mm field of view (FOV) and hybrid resonant scanners that enable high‑speed, high‑throughput imaging of large samplesmicroscope.healthcare.nikon.com. This article provides an in‑depth guide to the Nikon A1 confocal microscope, highlighting features, step‑by‑step workflows, real‑world applications and expert tips for maximizing image quality and experimental efficiency.

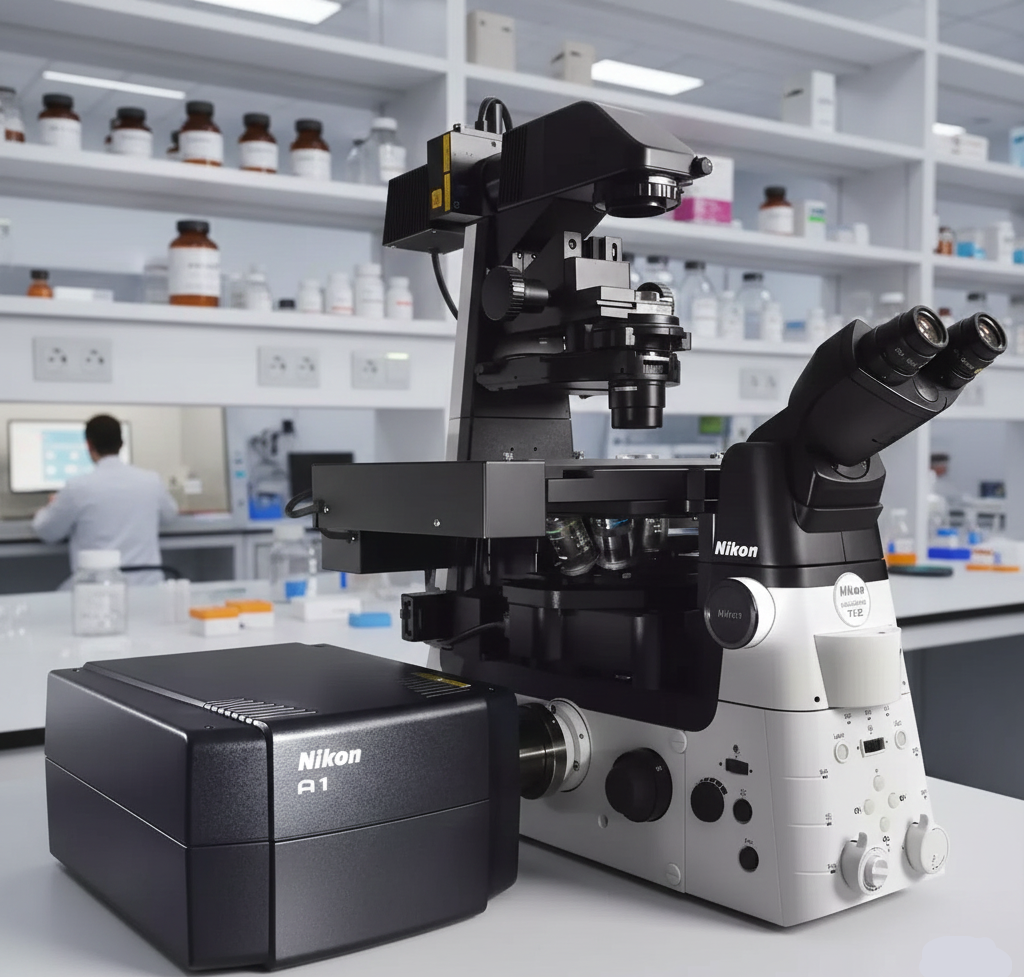

High-end Nikon A1 confocal fluorescence microscope system in a modern research laboratory, featuring precision optics, motorized components, and a laser scanning unit used for advanced cancer and cell biology imaging.

{getToc} $title={Table of Contents} $count={Boolean} $expanded={Boolean}

Understanding the Nikon A1 Confocal System

Core Features and Optics

Large field of view and high throughput. One of the defining innovations of the A1 R HD25 system is its 25 mm FOV, the largest in its classmicroscope.healthcare.nikon.com. A wider FOV allows researchers to capture more of a specimen in a single frame, increasing data throughput for large tissue sections or organism‑level imaging. When combined with tiled scanning and automatic stitching, this expanded FOV dramatically shortens acquisition time for high‑resolution mosaics such as cleared mouse brains or organoidsburke.weill.cornell.edu.

Hybrid resonant and galvanometric scanners. Standard A1 instruments include paired galvanometers that scan a point of laser light across the sample with high spatial precision, supporting resolutions up to 4096 × 4096 pixelsmicroscope.healthcare.nikon.com. The A1R models incorporate a hybrid scanner: a high‑speed resonant scanner enables imaging at up to 240 frames per second (fps) and even 720 fps in the latest HD25 instrumentburke.weill.cornell.edu, while a galvo scanner runs simultaneously for photoactivation or high‑resolution imaging. Hybrid scanning therefore supports both high‑speed time‑lapse imaging and precise photoactivation or photobleaching experiments like FRAP and PA bleachin.

Spectral imaging and unmixing. Certain biological samples contain overlapping fluorophores and strong autofluorescence. The A1 series addresses this with an optional 32‑channel spectral detector. The A1‑DUS detector covers a 320 nm wavelength range and can collect 32 discrete spectral bands during a single scansdu.dk. This allows accurate spectral unmixing to separate closely overlapping emission spectra and to remove autofluorescence from thick specimens like spinal cord or brain tissue. For example, the Burke Neurological Institute notes that the spectral detector enables real‑time unmixing of overlapping probes and removal of intrinsic fluorescence when imaging large cleared samplesburke.weill.cornell.edu.

High‑sensitivity detectors. The A1 uses four photomultiplier tubes (PMTs) and optional gallium arsenide phosphide (GaAsP) detectors. GaAsP detectors offer higher quantum efficiency than traditional PMTs, improving signal‑to‑noise ratio for dim fluorophoressdu.dk. The Nikon A1R HD25 includes two GaAsP detectors for green/red channels and two PMTs for blue/UV and far‑red detectionburke.weill.cornell.edu. This configuration supports imaging up to five channels simultaneously and allows sequential or parallel detection of multi‑colour samples.

Excitation lasers and objectives. The A1 platform typically incorporates multiple diode lasers spanning the ultraviolet to far‑red region. Common configurations include lasers at 405, 488, 561 and 640 nmburke.weill.cornell.edu; some systems add 440, 514 or 637 nm lines. Researchers can select from a wide range of Nikon Plan Apo and Apo λ objectives—ranging from low‑magnification 4× or 10× for overview imaging to high‑NA 60× oil or 100× oil lenses for super‑resolution applicationssdu.dk. High numerical aperture (NA) lenses combined with Nikon’s CFI60 optics deliver crisp images across the 25 mm FOV.

Perfect Focus System (PFS). Long time‑lapse experiments are susceptible to focus drift due to thermal fluctuations or mechanical vibrations. Nikon’s PFS automatically corrects focus drift by detecting the coverslip–sample interface and applying feedback to maintain focus. The A1R HD25 integrates PFS so researchers can perform hours‑long live‑cell imaging without losing focus. An environmental chamber controlling temperature and CO₂ ensures cell viability during imagingburke.weill.cornell.edu.

Uniform illumination and optical improvements. Using a fly‑eye lens and high‑power LEDs, the A1 series ensures uniform illumination across the entire 25 mm FOVmicroscope.healthcare.nikon.com. Large‑diameter fluorescence filters and expanded light paths maintain high signal‑to‑noise ratios for multiplex imaging. Apodized phase‑contrast objectives and an external phase‑contrast system allow combination of phase contrast and fluorescence imaging using high‑NA objectivesmicroscope.healthcare.nikon.com.


Models and Configurations

A1 and A1R. The original A1 confocal uses dual galvanometers for precise scanning and provides high‑resolution imaging up to 4096 × 4096 pixelsmicroscope.healthcare.nikon.com. It offers standard point‑scanning confocal imaging with optional spectral detection and motorized z‑stages. The A1R incorporates the hybrid resonant scanner described above for ultra‑fast imaging, making it ideal for dynamic processes like calcium transients and neuronal activity.

A1R HD25. Introduced in 2022, the A1R HD25 drastically expands the FOV to 25 mm and supports imaging up to 720 fpsburke.weill.cornell.edu. It also features improved detectors, Denoise AI processing and compatibility with Nikon’s NSPARC super‑resolution detector, which uses an array of single photon counters to reconstruct super‑resolution images with excellent signal‑to‑noise at depthmicroscope.healthcare.nikon.com. The HD25 platform supports both resonant and galvanometric scanning modes, giving users flexibility to optimize between speed and resolution.

Upright vs inverted configurations. The Nikon A1 system can be built on an upright stand (e.g., Ni‑E) or an inverted stand (e.g., Ti2‑E) depending on experimental requirements. Upright configurations are popular for thick tissues or cleared samples, while inverted models are favoured for live‑cell imaging and high‑content screening. For example, the Burke Neurological Institute uses an A1R upright confocal with a Tokai Hit environmental chamber to control temperature and gas during live imagingburke.weill.cornell.edu. On the other hand, university facilities often pair the A1 with the Ti2‑E inverted microscope for live‑cell, FRAP and FRET experimentsimaging.nd.edu.


Software and Automation

NIS‑Elements integration. All A1 systems are driven by Nikon’s NIS‑Elements software, which combines instrument control, multi‑dimensional acquisition and image analysis. The software offers modules for spectral unmixing, real‑time deconvolution, 3D rendering, FRAP/FRET analysis and kymograph display. It integrates with motorized XY stages and piezo Z drives to capture multiple z‑series and large mosaic. The user interface guides researchers through experiment design and data management, saving metadata for reproducibilitymicroscope.healthcare.nikon.com.

AI modules. Modern A1 installations often include Denoise AI and other deep‑learning tools that remove noise from low‑light images and enhance contrast without sacrificing resolutionimaging.nd.edu. These modules accelerate acquisition by allowing lower laser power and faster scanning, reducing photobleaching and phototoxicity.

Assist guides and sensors. High‑end Nikon microscopes integrate sensors that detect the status of objectives, filters and other components. For example, the Ti2‑E stand used with A1 systems records component settings during acquisition and provides step‑by‑step guides to prevent misconfigurationmicroscope.healthcare.nikon.com. These tools help novices set up complex experiments and ensure that imaging conditions can be reproduced later.


Step‑by‑Step Guide to Using a Nikon A1 Confocal Microscope

Successful confocal imaging requires more than just pressing “start.” Researchers must prepare samples, calibrate the instrument, select appropriate settings and process the resulting data. The following workflow provides a general roadmap.


1. Preparation and Sample Setup

  1. Prepare your sample. Confocal microscopy works best with well‑labelled, fluorescent specimens. Cells should be cultured on coverslips or imaging dishes with appropriate fluorophores. For tissues, fix, clear or section them to enable penetration of laser light. Keep samples hydrated and avoid air bubbles.
  2. Choose the correct objective and immersion medium. Select an objective lens with suitable magnification and numerical aperture (NA) for the structure of interest. For large overview images, use 4× or 10× air objectives; for subcellular details, select 60× or 100× oil or water lensessdu.dk. Use the correct immersion oil or water for high‑NA objectives to maintain refractive index matching and minimize spherical aberration.
  3. Control the environment. Live‑cell experiments require stable temperature and CO₂ conditions. Install an environmental chamber like the Tokai Hit enclosure and ensure the microscope’s stage is leveledburke.weill.cornell.edu. Allow the system to warm up to imaging temperature before starting.
  4. Clean optics and initialize the system. Wipe objective lenses and coverslips using lens paper and 70 % ethanol. Turn on the confocal system, lasers and detectors. Open NIS‑Elements and confirm that the microscope recognizes the objectives and filter cubes.

2. Calibration and Configuration

  1. Adjust Köhler illumination and focus. For transmitted light (brightfield/DIC), ensure Köhler illumination is set. Switch to fluorescence and set the appropriate laser line. Use the Perfect Focus System (PFS) to find and lock the focus plane; the PFS will automatically compensate for drift during acquisitionburke.weill.cornell.edu.
  2. Select scanning mode. Use galvo scanning for high‑resolution imaging or experiments requiring precise point control (e.g., FRAP, photoactivation). Select resonant scanning for high‑speed time‑lapse imaging; the A1R HD25 achieves up to 720 fps with resonant scanning. You can combine both modes—scanning with the resonant mirror while the galvo performs photoactivation—thanks to the hybrid scannermicroscope.healthcare.nikon.com.
  3. Choose detectors and spectral channels. Set up the detectors (GaAsP or PMT) and configure spectral windows appropriate for your fluorophores. If using the spectral detector, define the wavelength range and number of channels; NIS‑Elements will collect the full spectrum and perform unmixingsdu.dk. For multi‑colour imaging, set sequential scanning to avoid bleed‑through.
  4. Set laser power and pinhole size. Start with low laser power to minimize photobleaching; increase as necessary to achieve adequate signal. Adjust the pinhole to 1 Airy unit for each objective to balance optical section thickness and resolution.
  5. Define acquisition parameters. Set pixel dwell time, resolution (image size), scan speed, and number of averages. Higher dwell times improve signal‑to‑noise but increase exposure; resonant scanning reduces dwell time while maintaining dynamic imaging. Define z‑step size and range when acquiring stacks; choose Nyquist‑sampling intervals to avoid undersampling.

3. Image Acquisition

  1. Preview and adjust. Use the live preview to adjust focus, field of view and laser settings. Check for cross‑talk between channels by temporarily turning off adjacent lasers.
  2. Acquire the image or time‑series. Capture single optical sections, z‑stacks, or time‑lapse sequences. For FRAP experiments, define pre‑bleach and post‑bleach acquisition and specify the region of interest for bleaching. For FRET, collect donor and acceptor channels sequentially or simultaneously depending on the experimental design.
  3. Perform spectral unmixing if needed. If using the spectral detector, NIS‑Elements will display a spectral profile for each pixel. Select reference spectra for your fluorophores and run the unmixing algorithm to separate overlapping signals and remove autofluorescenceburke.weill.cornell.edu.
  4. Monitor focus and sample health. During long experiments, check that the PFS remains engaged and the sample remains within the field of view. Adjust laser power if photobleaching becomes apparent.

4. Post‑Acquisition and Analysis

  1. Image processing. Apply Denoise AI to reduce shot noise and improve contrast, especially for fast resonant scansimaging.nd.edu. Use built‑in deconvolution modules (e.g., 3D blind deconvolution) to improve resolution and reduce optical blur.
  2. Quantitative analysis. NIS‑Elements provides tools for object counting, intensity measurement, co‑localization analysis and kymograph creationmicroscope.healthcare.nikon.com. Export data to external software (e.g., Fiji, Imaris) for advanced analysis or machine‑learning pipelines.
  3. Record metadata and maintain reproducibility. Save the metadata file with details of objective, lasers, detector settings and scanning parameters. This helps replicate experiments and ensures compliance with FAIR data principles.
  4. Backup and share results. Store raw and processed data on secure servers. Use FrediTech’s digital microscopy platform to share images with colleagues and to integrate with AI‑assisted analytics (see internal links below).

Applications in Cell Biology and Pathology

Live‑Cell Imaging and Dynamic Processes

Confocal microscopy excels at visualizing dynamic cellular events. The A1R hybrid scanner, with speeds up to 240 fps and 720 fps in the HD25, allows researchers to track rapid calcium transients, cytoskeletal dynamics, vesicle trafficking and membrane receptor interactions. For instance, the University of Southern Denmark notes that the A1 system is regularly used for FRET, FLIP, FRAP, colocalization and calcium imaging, along with spectral unmixing and deconvolutionsdu.dk. High speed is also critical for capturing heartbeats in zebrafish embryos or neuronal activity in brain slices.

In cancer biology, the ability to monitor receptor internalization, kinase activity and protein–protein interactions in real time is invaluable. FRET experiments performed on the A1 can reveal when signalling proteins approach within 2–10 nm. For example, researchers have used FRET to monitor the activity of protein kinase Cα as a predictive biomarker for breast cancer and to compare interactions of mutant and wild‑type FGFR2 with adaptor proteinspmc.ncbi.nlm.nih.gov. The spectral detector helps distinguish donor and acceptor fluorophores while minimizing bleed‑through.


Large‑Scale Tissue and Organoid Imaging

Traditionally, confocal microscopes limited high‑resolution imaging to a narrow field of view, making it tedious to map large tissues. The A1 HD25 system’s 25 mm FOV and motorized stage enable efficient scanning of entire mouse brains, spinal cords or organoidsburke.weill.cornell.edu. Cleared tissues imaged with the spectral detector benefit from real‑time removal of autofluorescence, revealing labelled structures deep within the specimenburke.weill.cornell.edu. Researchers can generate high‑resolution 3D reconstructions, mosaic maps and morphological measurements for developmental biology or neuropathology studies.


Multiplexed Fluorescence and Spectral Unmixing

Multiplexed assays require detection of several fluorophores simultaneously. The A1 series’ 32‑channel spectral detector and GaAsP detectors support up to four or five channels per scanburke.weill.cornell.edu. In immuno‑histochemistry, investigators can label different cell types, signalling pathways or biomarkers with distinct dyes and then unmix their spectra to obtain clean images. For example, pathologists use spectral unmixing to differentiate overlapping fluorochromes in multiplex immunofluorescence protocols used to phenotype tumour microenvironments or immune cell infiltration.


3D Morphology and Volumetric Analysis

With a piezo Z‑drive, motorized stage and 25 mm FOV, the A1 can rapidly collect z‑stacks that extend hundreds of microns. When combined with deconvolution and 3D rendering in NIS‑Elements, researchers can reconstruct cellular architectures and quantify nuclear shape, neurite length or tissue volume. In neurosurgery and neuropathology, confocal imaging of cleared brain sections helps map neuronal circuits and detect structural defects. In developmental biology, confocal stacks of organoids reveal patterns of cell differentiation and tissue organization.


High‑Content Screening and Automation

High‑content screening (HCS) experiments require imaging hundreds or thousands of wells with reproducible conditions. The A1’s motorized XY stage, plate holders, resonance scanning and job scheduler (Nikon JOBS) support automated acquisition. The West Virginia University facility notes that the A1R system fits multi‑well plates and includes the Nikon JOBS module for automated plate imaginghsc.wvu.edu. Such automation allows drug screens, RNAi screens or CRISPR screens to be performed with minimal user intervention. Denoise AI and deconvolution modules in NIS‑Elements streamline data processing, while integration with analysis software facilitates hit identification.


Market Context and Vendor Comparison

The confocal microscope market is growing rapidly, driven by advances in optical technologies, detectors and AI. A 2025 report forecasted that the global confocal devices market would expand from USD 1.2 billion in 2024 to USD 2.5 billion by 2033, representing an annual growth rate of about 8.9 %linkedin.com. The report emphasizes that choosing the right confocal system involves evaluating optical performance, scanning speed, ease of use, compatibility with existing equipment, cost, support and innovation. According to the same source, Nikon is considered a robust vendor providing versatile confocal solutions with strong software integration for diverse applicationslinkedin.com. The report cites published data demonstrating that Nikon’s A1 systems deliver accurate and reproducible imaging results in cancer research laboratorieslinkedin.com.

While Leica and Zeiss offer high‑resolution and clinically validated systems and Olympus emphasizes high‑speed imaging and ease of uselinkedin.com, Nikon’s A1 stands out for its hybrid scanning technology, large FOV, spectral unmixing and fully integrated NIS‑Elements software. Additionally, Nikon invests in modular upgrades like the NSPARC detector—a super‑resolution array that uses single photon counters to reconstruct images with higher resolution and better signal‑to‑noise for deep tissue imagingmicroscope.healthcare.nikon.com. These innovations keep Nikon competitive in a market moving towards AI‑driven analysis and extended imaging capabilities.


Expert Tips and Best Practices

Even with cutting‑edge equipment, the quality of confocal data depends on user skill. Below are some expert tips to help maximize the performance of your Nikon A1 system:

  1. Minimize photobleaching. Photobleaching not only reduces signal but can also harm live cells. Use resonant scanning to shorten dwell time and reduce laser exposure. Start with low laser power and increase only as needed. Consider anti‑fading reagents and minimize time spent focusing and aligning.
  2. Optimize detector settings. For each fluorophore, adjust gain and offset on GaAsP or PMT detectors to maximize dynamic range without saturating. Avoid cross‑talk by using sequential scanning or narrow bandpass filters when necessary.
  3. Utilize spectral unmixing judiciously. Spectral unmixing is powerful but requires accurate reference spectra. When working with new dyes, record reference spectra on single‑label controls under the same imaging conditions. Keep in mind that unmixing algorithms can amplify noise, so apply Denoise AI after unmixing.
  4. Record metadata. Use NIS‑Elements to save objective information, laser power, exposure times, detector settings and environmental conditions. These metadata support reproducibility and compliance with data management policies.microscope.healthcare.nikon.com
  5. Integrate with analysis pipelines. Confocal datasets can be large and complex. Take advantage of FrediTech’s digital microscopy platform to store images, integrate AI tools for cell segmentation or object counting, and collaborate with colleagues across sites. Our digital microscopy guide explains how digital cameras, computers and advanced analytics streamline workflowsfreditech.com. Our advanced imaging techniques overview highlights the convergence of rapid sensors, AI and computing that underpins confocal and super‑resolution imagingfreditech.com.


Frequently Asked Questions

What makes the Nikon A1 different from other confocal microscopes?

The Nikon A1 series combines a large 25 mm FOV, hybrid resonant/galvo scanning, spectral detection and integrated NIS‑Elements software. These features allow high‑speed, high‑resolution imaging of large specimens with minimal photobleachingmicroscope.healthcare.nikon.comburke.weill.cornell.edu. Many competing systems offer some of these features, but few integrate them all in a single platform.

What is the difference between the A1 and A1R models?

The A1 uses dual galvanometers for high‑resolution scanning. The A1R adds a resonant scanner capable of hundreds of frames per second, making it suitable for rapid time‑lapse imaging and live‑cell dynamicsmicroscope.healthcare.nikon.com. The A1R HD25 further expands the field of view to 25 mm and increases scanning speed up to 720 fpsburke.weill.cornell.edu.

How does the spectral detector improve imaging?

The A1‑DUS spectral detector collects up to 32 spectral bands in a single scansdu.dk. With these data, NIS‑Elements performs spectral unmixing to separate overlapping fluorophores and remove autofluorescenceburke.weill.cornell.edu. This is essential when using multiple dyes or imaging thick tissues like brain slices.

Can I perform super-resolution imaging with the A1?

While the A1 is a point‑scanning confocal, it can be paired with the NSPARC detector to achieve super‑resolution imaging. NSPARC uses an array of single‑photon detectors to reconstruct images with higher spatial resolution and improved signal‑to‑noise at depthmicroscope.healthcare.nikon.com. For structured illumination (SIM) super‑resolution, Nikon offers the N‑SIM system; however, the A1R HD25’s large FOV and resonance scanning complement SIM imaging.

What sample thicknesses can the A1 handle?

Confocal imaging quality decreases beyond ~200 μm due to scattering and absorptionburke.weill.cornell.edu, but tissue clearing techniques and long‑working‑distance objectives allow imaging of entire mouse brains or spinal cordsburke.weill.cornell.edu. For deeper imaging, multiphoton or lightsheet systems may be more appropriate.

Is the Nikon A1 suitable for high-content screening?

Yes. The A1’s motorized stage fits multi‑well plates and, together with Nikon JOBS software, supports automated plate imaginghsc.wvu.edu. Hybrid scanning and Denoise AI allow rapid acquisition with minimal photobleaching, making the A1 ideal for high‑throughput screening of drugs or genetic perturbations.

How do I choose between upright and inverted configurations?

Choose an upright A1 configuration if you primarily image thick tissues, cleared samples, or ex vivo sections (such as brain slices) where top-down access is beneficial. Choose an inverted A1 if you focus on live-cell culture, multiwell plate assays, or experiments requiring environmental chambers and perfusion control. Both configurations can use similar detectors and optical modules—the decision depends on your specimen geometry and workflow.

Does the A1R support FRAP, FLIP and photoactivation?

Yes. The A1R hybrid scanner supports simultaneous imaging and targeted photo-manipulation, enabling experiments such as FRAP, FLIP, photoactivation, and optogenetic stimulation. NIS-Elements provides tools to define bleaching regions of interest (ROIs), control laser timing and acquisition settings, and perform quantitative analysis of recovery or signal changes.


Conclusion

The Nikon A1 confocal microscope series has set a benchmark for high‑performance imaging in life sciences and medical research. By pairing a large 25 mm field of view with hybrid resonant scanning, high‑sensitivity detectors and advanced spectral unmixing, the A1R HD25 model offers unmatched capabilities for high‑throughput, multi‑colour and dynamic imagingburke.weill.cornell.edusdu.dk. Researchers can capture everything from rapid calcium spikes in single cells to entire cleared mouse brains while maintaining focus and minimizing photobleaching. Integrated software like NIS‑Elements and modules such as Denoise AI, FRAP/FRET analysis and automated stage control simplify workflows and promote reproducibilitymicroscope.healthcare.nikon.com. As the global confocal microscope market grows and vendors compete on resolution, speed and AI integrationlinkedin.com, Nikon continues to invest in upgrades like the NSPARC super‑resolution detector and intuitive user guides. For labs seeking a versatile, future‑proof platform that bridges single‑cell biology, tissue imaging and high‑content screening, the Nikon A1 series delivers exceptional value and performance.
