Maintenance Tips for Nikon Microscopes in Clinical Labs: Ensuring Longevity and Accuracy
In clinical laboratories, microscopes are crucial tools used for diagnostics, research, and education. Proper maintenance of these microscopes ensures not only their longevity but also their accuracy, which is essential for obtaining precise and reliable results. Nikon microscopes, known for their high-quality optics and advanced features, require regular upkeep to function optimally. This comprehensive guide will discuss essential maintenance tips for Nikon microscopes in clinical labs, helping technicians and laboratory professionals maintain their equipment with ease.
{getToc} $title={Table of Contents} $count={Boolean} $expanded={Boolean}
1. Introduction to Nikon Microscopes in Clinical Labs
1.1 Why Choose Nikon Microscopes for Clinical Labs?
Nikon microscopes offer exceptional image clarity, precision, and versatility, making them an excellent choice for clinical laboratories. Their advanced optical systems, ergonomic design, and digital integration make Nikon microscopes a favorite in medical diagnostics and research.
1.2 Importance of Regular Maintenance
Proper maintenance ensures your Nikon microscope functions at its best. Without regular servicing, issues like optical distortion, focusing problems, and misalignment can arise, compromising the accuracy of lab results and diagnostic efficiency.
2. General Maintenance Guidelines for Nikon Microscopes
2.1 Daily Maintenance

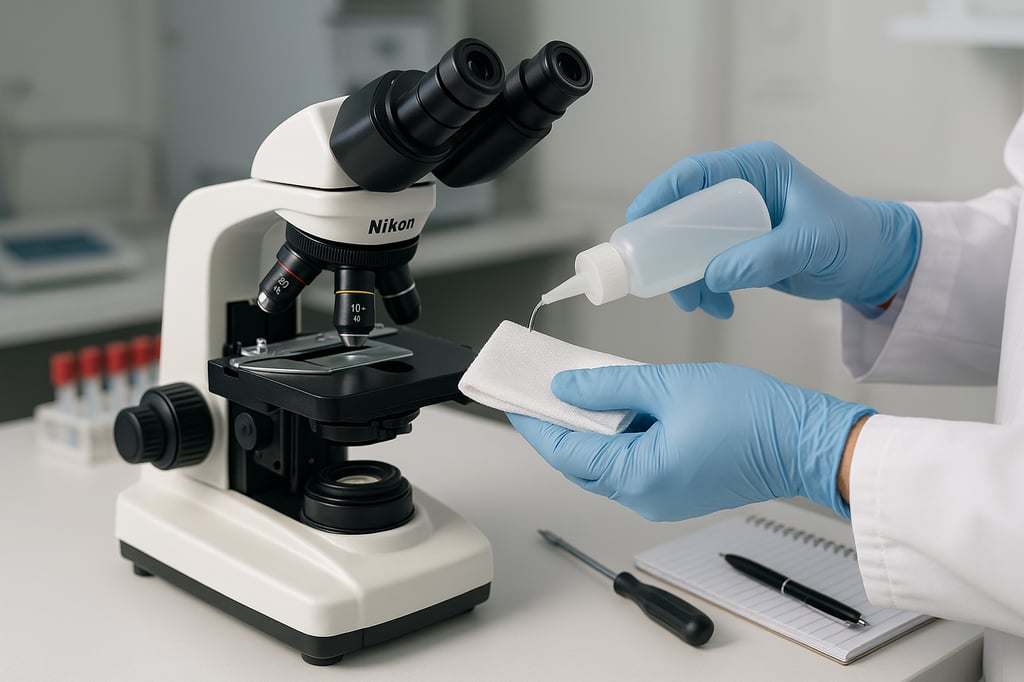

- Cleaning the Lenses:
Gently wipe the objective lenses and eyepieces with a soft, lint-free cloth to remove dust and fingerprints. Use lens cleaning solution and tissues specifically designed for optics. Avoid using excessive pressure to prevent scratching the lenses. - Stage and Focus Mechanism:
Clean the stage and focus knobs regularly, ensuring that the mechanism moves smoothly. Dust and debris can hinder their function, leading to inaccurate focusing.
2.2 Weekly Maintenance
- Check the Illumination:
Inspect the light source to ensure it's functioning properly. Clean the condenser lens and light aperture to maintain optimal light distribution. Adjust the light intensity as necessary for consistent results. - Focus Calibration:
Perform a focus calibration using a stage micrometer or a known reference object. This ensures that the focus mechanism remains accurate and reliable over time.
2.3 Monthly Maintenance
- Objective Lens Inspection:
Check for any debris or damage on the objective lenses. Clean them thoroughly, and inspect for any signs of wear, such as cracks or coating degradation, which may require professional servicing. - Eyepiece and Optical System Alignment:
Examine the eyepiece and optical system for proper alignment. Misalignment can lead to distorted images and hinder accurate observations.
3. Advanced Nikon Microscope Maintenance
3.1 Cleaning the Optical Path
- Disassemble and Clean the Optical Path:

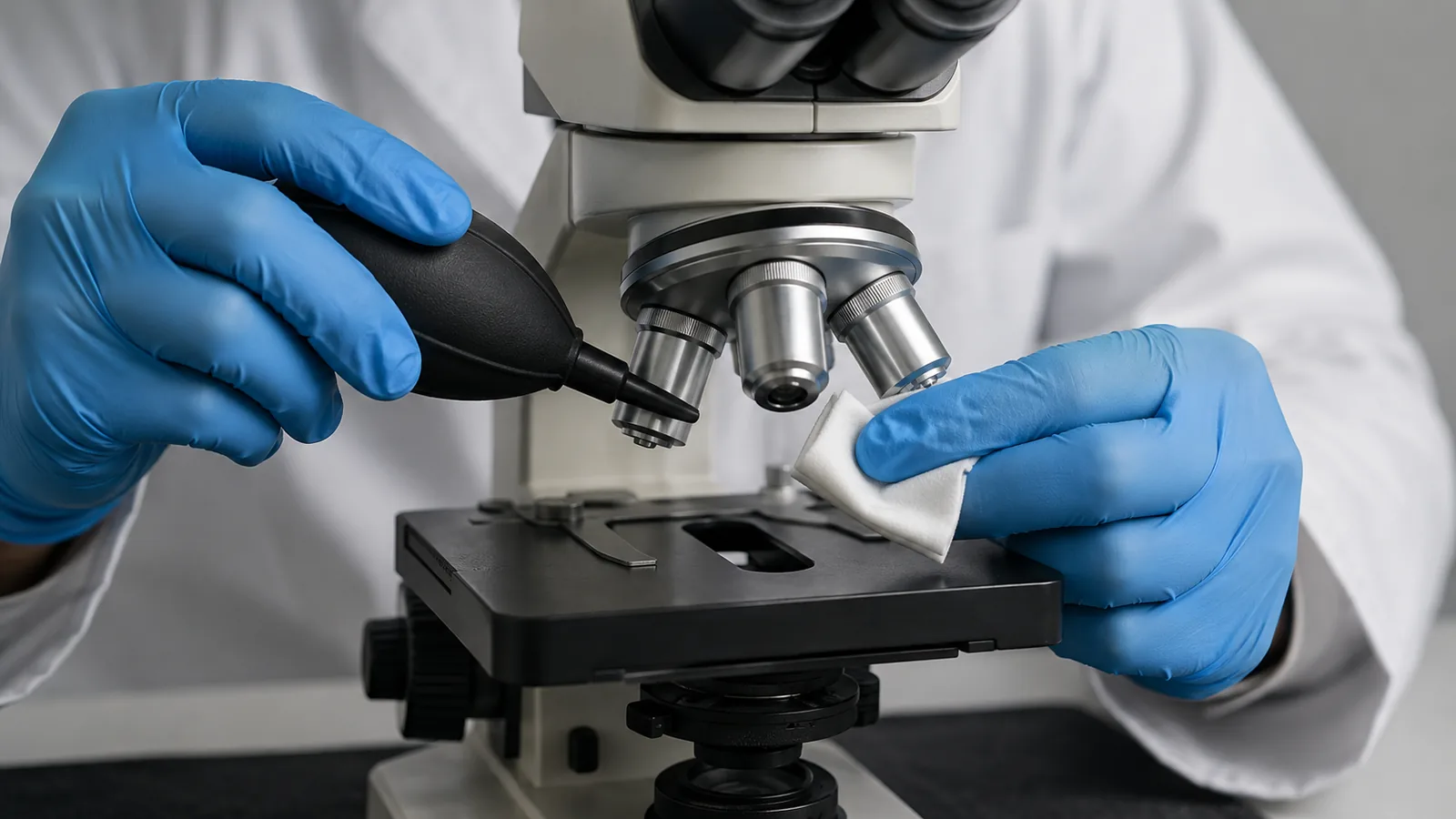

Regularly clean the optical path by removing dust from the condenser, objectives, and eyepiece lenses. Use a blower bulb to remove loose dust particles, and wipe down the lenses with an appropriate cleaning solution and cloth. - Check for Optical Misalignment:
Ensure that the optical components are correctly aligned. Misalignment can result in poor image quality, affecting diagnostic procedures.
3.2 Maintaining the Stage and Mechanical Components
- Lubricating the Mechanical Parts:
Regular lubrication of the stage and focus mechanisms helps prevent wear and tear. Use only recommended lubricants to avoid damaging delicate parts. - Stage Micrometer Calibration:
Perform routine calibrations with a stage micrometer to ensure the stage mechanism is functioning accurately. This is particularly important when measuring small specimens for diagnostics.
4. Nikon Microscope Light Source Maintenance
4.1 Replacing the Bulb
- Types of Bulbs:
Nikon microscopes generally use halogen or LED bulbs. Be sure to use the correct replacement bulb for your model. - Replacing the Bulb:
When the bulb dims or fails to illuminate, it is time to replace it. Follow the manufacturer's instructions for proper installation and disposal of the old bulb.
4.2 Adjusting the Illuminator
- Kohler Illumination Setup:
Proper illumination is essential for clear, high-contrast images. Adjust the condenser and aperture diaphragm to achieve Kohler illumination, ensuring an even and bright field of view. - LED Illumination System:
For models with LED lighting, make sure the light intensity is correctly adjusted for optimal viewing. LED systems are often more energy-efficient, but still require regular checks for performance.
5. Calibration and Performance Checks
5.1 Routine Calibration
- Why Calibration Is Important:
Calibration ensures that the microscope provides accurate measurements and maintains its optical performance over time. It is vital for obtaining precise results in clinical and research applications. - Performing Calibration:
Use a calibrated stage micrometer to verify the accuracy of the magnification system. Check the focus system with a reference object to ensure alignment and precision.
5.2 Image Quality Checks
- Resolution and Contrast:
Regularly check the resolution and contrast of your Nikon microscope by viewing test slides or calibration samples. This ensures that the optical system is functioning properly and producing high-quality images. - Color Balance and Brightness:
Ensure that the microscope’s color balance and brightness are consistent, especially when using advanced imaging technologies like fluorescence microscopy.
6. Special Maintenance Tips for Advanced Nikon Microscopes
6.1 Nikon Eclipse Ti2-E Maintenance
- Live Cell Imaging:
The Nikon Eclipse Ti2-E is widely used for live cell imaging. Regularly clean and calibrate the motorized stage and autofocus system to ensure smooth operation during live imaging sessions. - Maintaining the Perfect Focus System (PFS):
The PFS feature in the Ti2-E requires periodic checks to ensure continuous focus during imaging. Regular maintenance will extend the lifespan of this advanced feature.
6.2 Nikon NIS-Elements Software Maintenance
- Software Updates:
Regularly update the Nikon NIS-Elements software to ensure compatibility with the latest imaging technologies and bug fixes. - Data Storage and Backup:
Ensure that all microscope images and calibration data are regularly backed up and stored securely to prevent data loss.
7. Troubleshooting Common Nikon Microscope Issues
7.1 Image Distortion
- Possible Causes:
Image distortion can be caused by misalignment, dirty lenses, or incorrect magnification settings. Clean the optical system thoroughly and check the alignment of the lenses. - Solution:
Recalibrate the microscope and check for any loose or misaligned parts that may be contributing to the distortion.
7.2 Focusing Problems
- Possible Causes:
Issues with the focus system can arise from worn-out focus knobs or dried-out lubricants. - Solution:
Lubricate the focus mechanism and check the alignment of the objective lenses. If problems persist, consult a professional for further servicing.
8. Professional Servicing and Support
While daily and weekly maintenance can be performed in-house, Nikon microscopes may occasionally require professional servicing. Routine servicing by a certified technician ensures that all components, including the optics, motors, and software, are functioning optimally. Nikon also offers comprehensive support services for maintenance and troubleshooting.
9. Conclusion
Regular maintenance is essential for keeping Nikon microscopes in clinical labs performing at their best. By following the outlined tips and implementing a consistent maintenance schedule, clinical labs can ensure optimal performance, extend the life of their equipment, and produce reliable results. Whether performing basic cleaning, calibrating the optical system, or maintaining the light source, every aspect of microscope care contributes to accuracy and efficiency in clinical and research settings.
