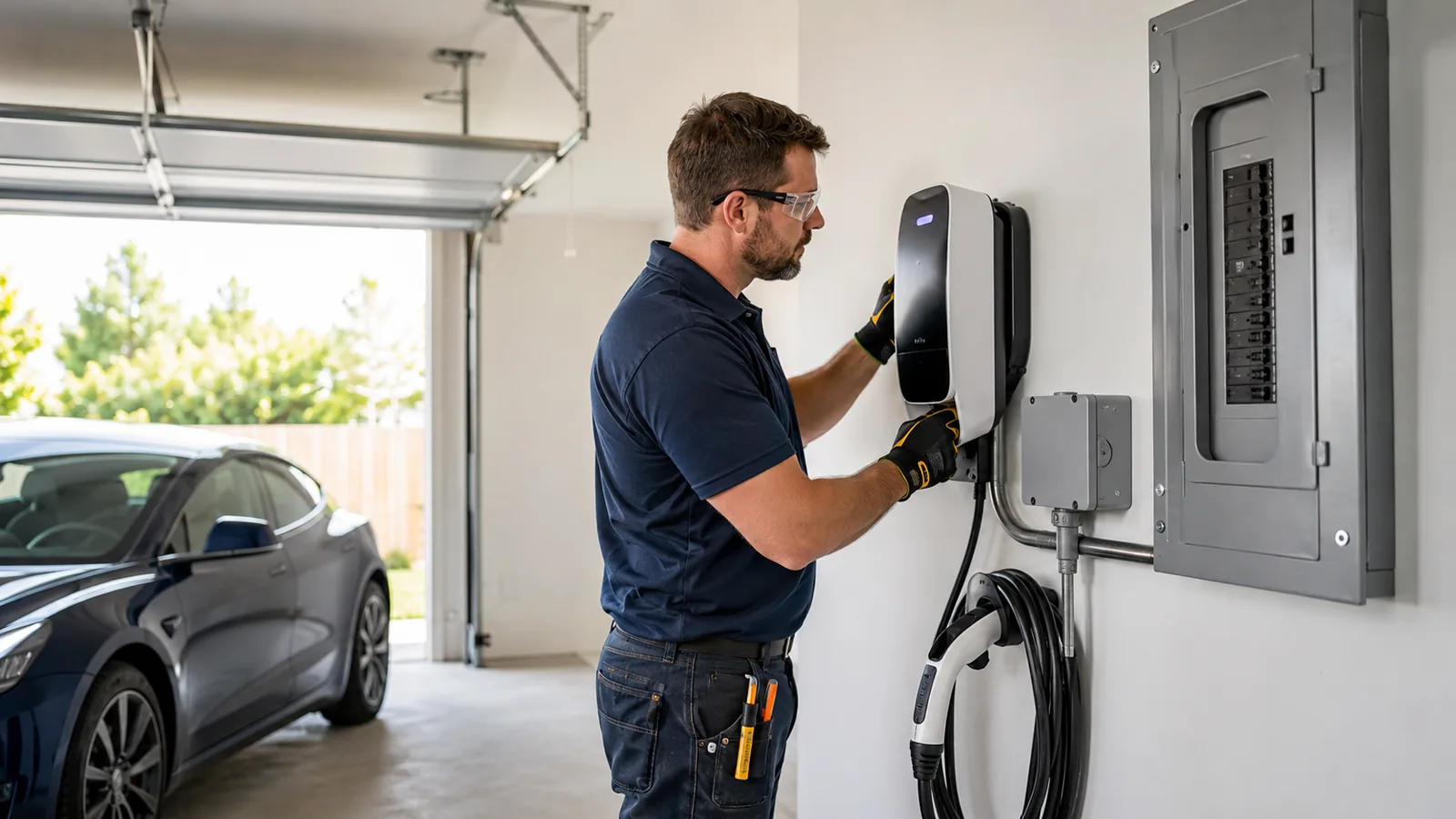

Home EV Charger Installation Guide

Introduction

The rapid adoption of electric vehicles (EVs) means more drivers are looking to charge at home. Home charging is convenient—you plug in at night and wake up to a full battery, saving time and reducing the need to visit public charging stationsepa.gov. Installing a charger also improves property value, supports cleaner transportation and, with the right incentives, can be surprisingly affordable. This guide draws on authoritative sources—including the U.S. Environmental Protection Agency (EPA), the Department of Energy (DOE), industry installers, and European experts—to demystify the process. You’ll learn about different charging levels, how to select the right equipment, how to prepare your home, detailed installation steps, costs, and available incentives.

Understanding Home EV Charging Levels

Home EV chargers fall into three categories. Choosing the right level depends on your driving habits, budget and home’s electrical capacity.

Level 1 Charging: When Slow Makes Sense

• Voltage & speed – Level 1 chargers operate on a standard 120‑volt outlet and add about 3–5 miles of range per hour. They draw 8–16 amps.

• Use cases – Suitable for plug‑in hybrids (PHEVs) and drivers with short daily commutes. Because Level 1 uses a regular outlet, there’s no installation cost if a dedicated branch circuit is available.

• Pros & cons – Minimal equipment cost and easy to use, but charging times are long. A full charge may take 24–48 hours, so most fully electric car owners upgrade to Level 2voltaelectricinc.com.

Level 2 Charging: The Residential Standard

• Voltage & speed – Level 2 chargers run on 240 volts, the same voltage as an electric dryer. They deliver roughly 25–40 miles of range per hour and typically output 16–80 amps, with 30–40 amps being most common.

• Advantages – Level 2 can fully charge most EVs overnight, eliminates range anxiety and is the standard choice for residential installations. Qmerit notes that Level 2 chargers require a dedicated 30–100‑amp circuit and may need a panel upgrade; load‑shedding devices can balance power without upgrading.

• Connector types – Most EVs use the J1772 connector (or the NACS/Tesla plug with an adapter). Always match the charger’s connector to your vehicle or use an adapter.

• Hardwired vs plug‑in – Hardwired chargers are permanently connected and can deliver higher power, while plug‑in models use NEMA 14‑50 or NEMA 6‑50 outlets. Plug‑in units offer portability—handy if you move—but may deliver slightly less power.

• Tethered vs untethered – A tethered charger has a built‑in cable; an untethered unit lets you use your own cable. PodEnergy suggests considering cable length, ease of storage and where your vehicle’s charging port is locatedpodenergy.com.

Why Level 3 (DC Fast Charging) Isn’t for Homes

Level 3 DC fast chargers deliver 100–200 miles in 20–30 minutes, but they require 480‑volt three‑phase power and cost $15,000–$50,000 to install. According to Qmerit, they need 400‑amp service and professional installation, making them practical only for commercial locationsqmerit.com. Homeowners should stick to Level 2 for cost and safety reasons.

Choosing the Right Home Charger

Selecting a charger involves matching your vehicle and lifestyle needs to available equipment.

Assess Your Driving and Power Needs

• Daily mileage – Estimate how many miles you drive daily. If you commute 30 miles or less, a lower‑amperage Level 2 charger will fully replenish overnight. Long‑distance commuters may benefit from 40‑ or 48‑amp models.

• Vehicle’s onboard charger – Your EV’s onboard charger dictates the maximum power it can accept. Installing a 19.2 kW charger won’t speed up charging if your car only accepts 7.2 kW.

• Electrical capacity – Check your main breaker rating. Homes with 200‑amp service usually have sufficient capacity for a Level 2 charger, while 100‑amp service may be adequate but requires careful load management. If capacity is limited, consider a 16‑amp Level 2 charger, load management devices or circuit sharingepa.gov.

• Future proofing – Plan for additional EVs or electrified appliances. Upgrading to 200 amps now may cost $2,500–$4,500 but provides capacity for future needs and can increase home value.

Charger Types: Hardwired vs Plug‑In, Tethered vs Untethered

• Hardwired – Provides a cleaner installation and can deliver slightly higher power. Recommended if you own your home long‑term.

• Plug‑in – Connects to a 240‑volt outlet. Offers flexibility—you can take the charger when moving or use it at a vacation home. Be aware of slightly lower power output and ensure the outlet meets current electrical codes.

• Tethered – Built‑in cable for easy plug‑and‑play. Considered more convenient for daily use, but replacement means replacing the entire unit.

• Untethered – Allows the use of detachable cables. Beneficial if your household has both J1772 and NACS vehicles or if you prefer to store the cable separately.

Smart Chargers and Connectivity

Modern EV chargers offer Wi‑Fi or Bluetooth connectivity for scheduling, energy tracking and integration with home energy management systems. PodEnergy notes that most chargers require a stable Wi‑Fi connection to access smart features; if the charger loses connection, it will continue to charge but smart functions won’t workpodenergy.com. Choose a charger with features such as:

• Adjustable amperage

• Load sharing between multiple chargers or household appliances

• Energy use monitoring

• Scheduling to charge during off‑peak electricity rates

• Access control to prevent unauthorized use

Preparing Your Home for EV Charging

Proper preparation ensures a smooth installation and long‑term reliability.

Location and Accessibility

• Dedicated off‑street parking – Many providers require a private driveway or garage for safety.

• Proximity to vehicle and power – The charger should be close to the EV’s parking spot. PodEnergy recommends ensuring the cable reaches the car comfortably and warns that providers may limit the cable distance; standard installations often include up to 15 metres of cablepodenergy.com.

• Outdoor vs indoor – Outdoor installations are safe with weather‑rated equipment. Ensure the charger is weatherproof and avoid routing cables through hazardous areas.

Assessing Electrical Capacity and Panel Space

• Identify your service rating – Check your main breaker (usually at the top of your panel) to find your home’s amperage rating.

• Check for available slots – Level 2 chargers require a dedicated double‑pole breaker. If your panel lacks space, electricians can consolidate circuits or install a subpanel—costing $400–$2,000.

• Load management and circuit sharing – Smart devices can reduce charging speed when other appliances run, allowing installation without upgrading service. Circuit sharing lets a charger share a circuit with another appliance, only operating one at a time.

Permitting and Regulations

• National Electrical Code (NEC) – EV charging is treated as a continuous load; installations must comply with NEC Article 625, requiring dedicated circuits, proper wire sizing, ground‑fault protection and weatherproofing.

• Local building permits – Many jurisdictions require permits for installing new circuits. For example, Los Angeles mandates a licensed electrician, permit application with plans, and post‑installation inspectionvoltaelectricinc.com. Unpermitted work can lead to fines, safety hazards or insurance issues.

• Homeowner associations (HOAs) – In communities governed by HOAs, you must submit installation plans for approval and cover the cost; HOAs cannot unreasonably deny EV charging requests but will expect adherence to rules.

• Historic properties – Additional restrictions may apply. Contact your local planning office.

Step‑by‑Step Home EV Charger Installation

Step 1 – Determine the Installation Location

Choose a spot near your parking space that is accessible and safe. Wall mounting inside a garage is common, but pole mounting outdoors is possible with weather‑rated equipment. Avoid obstructions or areas prone to flooding or tripping hazards.

Step 2 – Assess Your Electrical System (or Hire an Electrician)

Examine your electrical panel to ensure it can handle the charger’s amperage. Professional electricians can evaluate load, inspect wiring and advise on upgrades or load management. The EPA suggests that homes with 200 amps and a few open slots usually support a Level 2 charger, whereas 100‑amp service may be adequate but requires careful managementepa.gov. In older homes with 60–100 amps, consider a lower‑powered charger or plan for an upgrade.

Step 3 – Select the Right Charger

Choose a charger rated for your home’s electrical capacity and your vehicle’s onboard charger. Consider whether you need a tethered or untethered unit and whether you prefer a hardwired or plug‑in installation. Future proof by selecting a charger compatible with potential future EVs. Ensure the charger has the correct connector (J1772, NACS/Tesla) and sufficient cable length.

Step 4 – Obtain Necessary Permits and Approvals

Contact your local building department to confirm permitting requirements. Provide a site plan showing circuit routing, wire sizes and equipment specifications. In multifamily buildings or HOAs, obtain written approval. It’s advisable to involve a licensed electrician at this stage; they can submit permits on your behalf.

Step 5 – Hire a Qualified Electrician

Hire an electrician experienced in EV charger installations. Verify their licensing and insurance. They will calculate load, run a dedicated circuit, install a two‑pole breaker, and connect the charger safely. Following NEC guidelines, the circuit breaker should be sized 125% of the charger’s rating; for example, a 40‑amp charger needs a 50‑amp breaker. For Level 2, Qmerit stresses using a 30–100 amp, 240‑volt dedicated circuit and notes that some installations may require a NEMA 14‑50 outletqmerit.com.

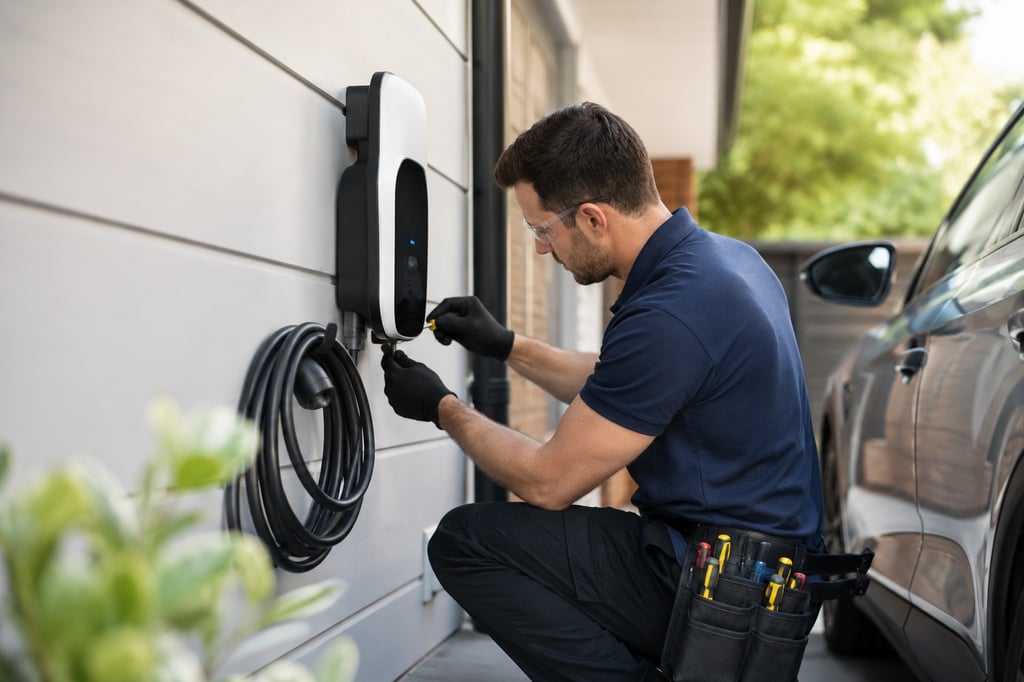

Step 6 – Installation and Testing

The electrician will mount the charger securely, run conduit or cable, and connect it to the new breaker. They will test for proper grounding, verify correct power delivery, and configure settings. Always choose safety‑certified equipment; ENERGY STAR‑certified chargers have been tested by nationally recognized labs.

Step 7 – Connect Your EV and Start Charging

After inspection, plug in your EV and ensure it charges correctly. Set up any smart‑charger app for energy tracking and scheduling. If your charger has adjustable amperage, start at a lower setting and increase gradually.

Step 8 – File for Incentives

Save receipts and filing documents. The federal EV charging tax credit (Section 30C) offers 30% of the cost of installing a charger (equipment plus labor) up to $1,000 for personal usepluginamerica.org. To qualify, the installation must be in a low‑income or non‑urban census tract and be operational by June 30, 2026. File the credit on your tax return for the year the charger is placed in service. Many states, utilities and cities provide additional rebates; the EPA suggests checking ENERGY STAR’s incentives page or your local utility’s website. Some cities offer curbside charger programs for residents without driveways.

Cost of Installing a Home EV Charger

Average Cost and Components

EnergySage reports that the average U.S. Level 2 charger installation cost $2,442 in 2025energysage.com. However, your cost depends on equipment, labor and electrical work:

Component	Typical Cost	Notes
Level 2 charger	$400–$1,500	Basic chargers start around $300–600; mid‑range units $600–900; premium smart chargers $900–1,500. Tesla Wall Connectors run $400–$550.
Labor	$300–$2,000	Electricians charge about $50–$100 per hour. Simple installations may take 4–8 hours; distance from the panel and complexity increase labor costs.
Permit fees	$50–$300	Vary by jurisdiction; Los Angeles permit fees range $100–$250.
Panel upgrade	$2,500–$4,500	Required if service capacity is insufficient.
Service line upgrade	$1,000–$3,000	If utility requires a higher‑capacity supply line.
Total project	$1,300–$6,000+	For typical installations: $1,300–2,600 for basic setups; $2,600–4,000 for moderate; $4,000–6,000 for complex; $5,000–8,500 with panel upgrade.

Factors Influencing Cost

1. Distance from panel – Longer wire runs cost more. Installations within 20 feet of the panel are cheaper than those 50–100 feet away.
2. Installation complexity – Conduit runs through finished walls, trenching to detached garages or navigating attics increase labor.
3. Electrical capacity – Upgrading to 200 amps or installing a subpanel adds significant expense.
4. Geography – Labor rates vary by region. The cited costs apply to Los Angeles; other cities may be lower or higher.
5. Smart features – Wi‑Fi and advanced capabilities add cost but provide energy management benefits.

Cost Comparison: DIY vs Professional

While some EV chargers come with DIY instructions, experts strongly recommend professional installation. Volta Electric cautions that ignoring permits, overloading panels or improper wire sizing can lead to safety hazards and insurance issues. The potential savings from DIY rarely justify the risk: errors may result in failed inspections or damage to your home’s electrical system. Always hire a licensed electrician.

Incentives and Rebates

Installing a home EV charger can qualify you for incentives at multiple levels:

• Federal tax credit (Section 30C) – 30% of the cost up to $1,000 for individuals, available through June 30 2026. Must be installed in an eligible census tract.
• State and local rebates – Many states and utilities offer rebates; for example, Los Angeles utilities have historically provided $500–$1,000 rebates. Check your local utility’s program.
• Time‑of‑use (TOU) rates – Utilities offer discounted electricity rates for charging overnight or during off‑peak hours, reducing operating costs.
• Grants for renters and flats – In the UK, the EV Chargepoint Grant can subsidize installation for renters or flat owners. Several U.S. states have “Right‑to‑Charge” laws guaranteeing renters the right to install chargers.
• Utility load management programs – Some utilities provide free or discounted load management devices that coordinate charging with grid demand, potentially avoiding service upgrades.

Always consult a tax professional and check current program details before installation. Incentives can change annually.

Real‑World Examples and Practical Tips

Example 1: Urban Homeowner Upgrades to Level 2

A Los Angeles homeowner with 200‑amp service installed a 40‑amp hardwired Level 2 charger. The unit cost $750, with $1,200 for labor, permits and materials—total $1,950. Because the panel had space, no upgrade was required. The homeowner claimed a 30% federal tax credit, reducing net cost to $1,365, and received a $500 utility rebate, bringing the out‑of‑pocket expense to $865. They also enrolled in a time‑of‑use electricity plan, charging at night for half the daytime ratevoltaelectricinc.com. The charger’s smart scheduling automatically starts charging at midnight. After a year, fuel savings compared to gasoline (~$1,440 per year at LA electricity rates) offset the installation costs.

Example 2: Rural UK Driver Chooses a 7.4 kW Charger

In the UK, a driver living in a rural cottage opted for a 7.4 kW tethered charger. They ensured their driveway provided off‑street parking and selected a location near the vehicle. PodEnergy’s standard installation includes 15 metres of cable—sufficient for the distance from the distribution board. They confirmed Wi‑Fi coverage for smart features. As most UK homes have single‑phase power limited to 7.4 kW, upgrading to 11 kW or 22 kW would have required expensive three‑phase service. The 7.4 kW charger fully charges the car overnight and qualifies for the OZEV grant (up to £350). The driver selected PodPoint because it’s OZEV approved, compatible with all plug‑in vehicles and compliant with smart charge regulationspodenergy.com.

Tips for a Smooth Installation

1. Plan cable routing – Avoid drilling through finished walls by locating the charger near the electrical panel or using unfinished areas (basements, garages). Provide protective conduit for outdoor runs.
2. Consider future needs – Run conduit or install a higher‑amperage circuit if you may own multiple EVs. Pre‑wiring new constructions saves money later.
3. Communicate with neighbours or HOAs – Set expectations, avoid conflicts and secure approvals early.
4. Check for right‑to‑charge laws – Renters should know local regulations granting rights to install chargers.
5. Use certified equipment – ENERGY STAR‑certified chargers ensure safety and efficiency.

Common Mistakes to Avoid

• Ignoring electrical capacity – Attempting to install a high‑amperage charger without verifying panel capacity can trip breakers or cause fires. Always evaluate your electrical system.

• Skipping permits – Unpermitted work may violate building codes, void insurance and create resale problems.

• Overlooking future needs – Installing a 16‑amp charger might suffice now, but upgrading later costs more. Consider a charger that supports higher amperage or has adjustable settings.

• Improper cable placement – Long cables across walkways pose tripping hazards. Use proper cable management and check local regulations.

• Choosing the wrong connector or charger type – Verify your EV’s connector (J1772 or NACS/Tesla) and ensure compatibility.

Conclusion

Home EV charger installation is a multi‑step process, but the benefits—convenience, lower fuel costs, reduced emissions and potential property value increase—make it worthwhile. To ensure success, assess your driving needs, evaluate your home’s electrical capacity, choose the right equipment, follow local permitting procedures and hire a qualified electrician. By leveraging federal tax credits, state rebates and utility incentives, you can significantly reduce installation costs. With planning and proper installation, your charger will provide reliable, safe and efficient charging for years to come.

Frequently Asked Questions (FAQ)

Do I need a permit to install a Level 2 charger at home?

Yes. Most cities and local jurisdictions require permits and inspections for Level 2 EV charger installations. For example, Los Angeles requires permit applications, electrical plans and post-installation inspections before approval. Always contact your local building or electrical department to confirm permit requirements in your area.

Can I install an EV charger myself?

DIY installation is generally not recommended. Level 2 chargers require dedicated circuits, proper grounding, correct wire sizing and compliance with National Electrical Code (NEC) standards. Hiring a licensed electrician helps ensure safety, code compliance and protection of your homeowner’s insurance coverage.

How long does installation take?

Most Level 2 EV charger installations take approximately 4–8 hours of electrician labor depending on the complexity of the wiring and panel access. Additional time may be needed for permits, inspections and utility approvals depending on local regulations.

How do I know if my home has enough electrical capacity?

Start by checking your main electrical panel rating, commonly 100 amps or 200 amps. A licensed electrician can perform a detailed load calculation to determine whether your existing system can support EV charging. Homes with 200-amp service usually have enough capacity, while some 100-amp systems may require load management devices or electrical upgrades.

What if I rent or live in a condo?

Many regions now support “Right-to-Charge” laws that allow renters and condo owners to request EV charger installation. In countries like the UK, government grants such as the EV Chargepoint Grant can help reduce installation costs. You may still need approval from landlords, property managers or homeowners associations before installation.

Is Level 2 charging safe in the rain or outdoors?

Yes. Outdoor-rated Level 2 EV chargers are designed to operate safely in rain and harsh weather conditions. Always choose a charger with proper weatherproof certification and ensure installation follows the manufacturer’s safety guidelines and local electrical codes.

How much will my electricity bill increase?

Electricity costs depend on local utility rates and driving habits. On average, EV charging may cost around $0.03 per mile when electricity costs approximately 10.7 cents per kWh and the vehicle consumes 27 kWh per 100 miles. Charging during off-peak hours with time-of-use utility plans can help lower costs further.

Can I use a standard dryer outlet for my charger?

Some homes already have 240-volt dryer outlets that can support Level 2 charging. However, an electrician should inspect the wiring, breaker capacity and outlet type to ensure compatibility with your EV charger and compliance with current electrical codes before use.
