Smartphone Battery Technology Explained: Unveiling the Future of Mobile Power
Introduction
Smartphones are the pulse of modern life. Their processors rival laptops, their cameras shoot cinema‑quality video and their displays offer near–retina resolution. None of these features matter, however, if your phone dies halfway through the day. The humble battery is the unsung hero that powers every call, photo and stream. Yet many users still see battery capacity as a mysterious black box. How does the power pack inside your phone actually work, why does it degrade and what technologies are on the horizon to make your phone last longer?
This guide demystifies smartphone battery technology. We’ll start with a clear explanation of lithium‑ion batteries—the chemistry powering almost every phone today—before exploring emerging technologies like solid‑state, silicon‑anode, lithium‑sulfur, sodium‑ion and even nuclear‑diamond batteries. Along the way you’ll learn how to optimize your existing battery life and when to expect new breakthroughs to reach consumer devices. Internal links to FrediTech articles provide deeper dives into Apple devices and iOS battery optimization, while external citations from universities, industry news and science sites ground our discussion in reputable sources.
{getToc} $title={Table of Contents} $count={Boolean} $expanded={Boolean}
{getToc} $title={Table of Contents} $count={Boolean} $expanded={Boolean}
Understanding Lithium‑Ion: How Your Phone Battery Works

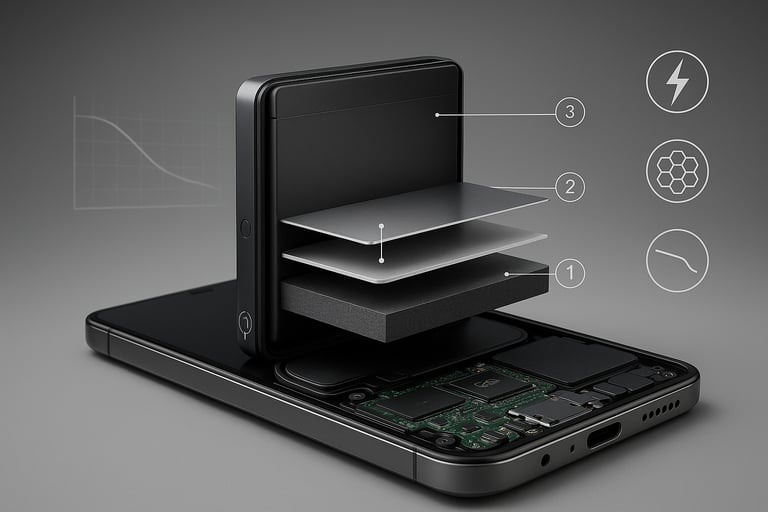

Anatomy of a lithium‑ion battery
A typical smartphone battery consists of three major components: a cathode (positive electrode), an anode (negative electrode) and an electrolyte. During discharge, lithium ions travel from the anode to the cathode through the electrolyte; during charging the flow reverses. In lithium‑ion (Li‑ion) cells, the cathode is usually a metal oxide and the anode consists of porous carbon (graphite). The movement of lithium ions creates free electrons in the anode and forms a charge at the positive current collector, generating electricitybatteryuniversity.com.
Lithium metal has a high electrochemical potential and provides a large specific energy per weight. Early rechargeable lithium‑metal cells were promising but proved unsafe: dendritic lithium growths punctured the separator, causing short circuits and thermal runaway. After a series of fires and recalls in the early 1990s, manufacturers shifted to lithium‑ion cells that use graphite instead of metallic lithium, sacrificing some energy density for safety. Sony commercialized the first Li‑ion battery in 1991, and continual improvements have made it the preferred chemistry for portable electronicsbatteryuniversity.com.
Why lithium‑ion batteries dominate smartphones
Li‑ion cells combine high energy density, light weight and relatively low maintenance. Specific energy has improved significantly since the technology’s debut; capacity for 18650 cells rose from 1,100 mAh in 1994 to over 3,000 mAh today while costs fell from US$10 to under US$3batteryuniversity.com. Lithium‑ion batteries also feature a flat discharge curve (around 3.70–2.80 V per cell) allowing electronics to utilize stored energy efficiently. Self‑discharge is less than half that of nickel‑based chemistries, and there is no “memory effect”—you don’t have to drain the battery completely before recharging. These advantages explain why almost every smartphone relies on lithium‑ion cells.
Limitations of current lithium‑ion technology
Li‑ion batteries are not without problems. Chemical reactions gradually form unwanted structures called dendrites, which can pierce the separator and short the cellbatteryuniversity.com. Over time, the electrodes lose capacity due to repeated expansion and contraction during charge cycles. Heat is another enemy: high temperatures accelerate chemical degradation and may lead to thermal runaway. Because graphite can bind only one lithium ion per six carbon atoms, there is a limit to how much energy lithium‑ion cells can store. Researchers have experimented with doping graphite with silicon—silicon can bind more lithium ions—but pure silicon anodes swell dramatically during charging, causing cracking and loss of capacitybatteryuniversity.com.
How manufacturers optimize battery life
Phone makers mitigate these limitations through hardware and software. Apple’s A15 Bionic chip, for example, balances high performance with energy efficiency, delivering fast processing while managing power consumption. As FrediTech’s iPhone 13 Mini review notes, the A15’s efficiency means the compact phone can multitask smoothly and still last most of the dayfreditech.com. Battery management systems monitor voltage, current and temperature, preventing over‑charging and over‑discharging. Software also plays a role: iOS’s Low Power Mode reduces screen brightness, disables certain animations and suspends background tasks to preserve battery lifefreditech.com. Users can further extend runtime by disabling background app refresh, limiting location services and keeping the device updated. For more tips, see FrediTech’s guide on battery and performance optimizationfreditech.com.
Why We Need Better Batteries
Phones continue to push boundaries—high‑refresh displays, powerful AI chips and advanced camera sensors all demand more energy. Meanwhile, consumers expect thinner devices and faster charging. This creates a tension between energy density (how much power a battery can store per unit weight or volume) and charging speed. Increasing energy density typically requires more active material and thicker electrodes, which slow the movement of ions and increase heat during charging. Rapid charging accelerates wear and may exacerbate dendrite formation.
The environmental impact of lithium‑ion also matters. Cobalt and nickel mining raise ethical and sustainability concerns, and sourcing battery‑grade graphite is expensive and resource‑intensive. Recycling lithium‑ion cells is possible but still limited. As smartphone adoption grows globally, the pressure to find safer, more sustainable and higher‑capacity batteries intensifies.
Emerging Technologies: A Look Into the Future
Battery researchers and start‑ups are pursuing numerous alternatives to improve energy density, safety and sustainability. Here we explore the most promising candidates.
Solid‑State Batteries (SSBs)
What they are: Solid‑state batteries replace the liquid or gel electrolyte found in lithium‑ion cells with a solid material (ceramic, polymer or sulfide). Removing flammable liquid electrolytes dramatically improves safety and allows for the use of lithium metal anodes, which store more energy per gram than graphitezmescience.com.
Benefits: A review by the University of California, Riverside, notes that solid‑state batteries can achieve over 90 % capacity retention after 5,000 charge cycles—far exceeding today’s lithium‑ionzmescience.com. Laboratory prototypes reach 80 % charge in 12 minutes, or even as little as three minutes, thanks to higher critical current density. Solid electrolytes are chemically stable and non‑volatile; they enable ultrathin lithium metal anodes, resulting in lighter batteries with higher capacity. SSBs also operate over a broader temperature range and are more resistant to puncture, making them attractive for electric vehicles and aerospace applicationszmescience.com.
Real‑world progress: Maryland Energy Innovation Institute highlights Ion Storage Systems, a U.S. start‑up producing novel solid‑state batteries inspired by hydrogen fuel cells. The company’s high‑energy cells began pilot production in Beltsville, Maryland, and early trials suggest they could yield power cells that last 50 % longer and have a near‑zero chance of catching fireenergy.umd.edu. Investors believe solid‑state cells could revolutionize electronics, although global venture‑capital investment in the sector remains modest.
Consumer prototypes are emerging. In 2023, Xiaomi replaced a 4,500 mAh lithium‑ion pack in a Xiaomi 13 phone with a 6,000 mAh solid‑state battery, a 33 % capacity increase with energy density exceeding 1,000 Wh/l—far above the 300–700 Wh/l typical of lithium‑ionandroidpolice.com. Japanese firm TDK announced a solid‑state battery for wearable devices in mid‑2024, and companies like ProLogium (Taiwan), Toyota and Samsung SDI plan large‑scale production around 2027.
Challenges: Manufacturing SSBs at scale is difficult. Ceramic oxide electrolytes require high temperatures and precise fabrication, raising costs. Sulfide‑based electrolytes are cheaper but can produce lithium dendrites and generate toxic gases. Current prototypes work well in lab conditions, but large‑scale commercial production may still be years away. Nevertheless, experts predict that solid‑state batteries will appear in consumer tech by the end of the decade.
Silicon‑Anode Batteries
Replacing the graphite anode in lithium‑ion cells with silicon can dramatically increase energy storage: silicon can bind 10 times more lithium ions than graphite. However, pure silicon expands as it absorbs electrons, causing the anode to crack and degrade. The solution is a silicon‑carbon composite, which adds just enough silicon to boost capacity without compromising reliabilityandroidpolice.com.
Current adoption: Smartphone makers are already experimenting. Huawei’s Mate X5 foldable uses a 5,060 mAh silicon‑carbon battery, while Honor says the silicon‑carbon cell in its Magic5 Pro offers a 12.8 % capacity increase. Battery University notes that adding 3–5 % silicon to graphite anodes improves performance without the swelling issues of pure siliconbatteryuniversity.com. Silicon‑anode cells thus represent a bridge technology that could boost battery capacity in upcoming phones without the manufacturing challenges of solid‑state.
Lithium‑Sulfur Batteries
Lithium‑sulfur (Li‑S) cells replace costly cobalt and nickel cathodes with sulfur, an abundant and environmentally friendly element. Li‑S batteries promise higher energy density and a lighter weight than lithium‑ion. They also eliminate the need for battery‑grade graphite and controversial cobalt mining. However, Li‑S cells historically suffered from rapid cathode degradation and poor cycle life.
Recent advances: U.S. company Zeta Energy claims to have developed a lithium‑sulfur battery capable of withstanding 2,000 charge–discharge cycles, a significant improvement over earlier designs. The company plans to manufacture the first commercial batch of Li‑S cells soonandroidpolice.com. If these results hold, Li‑S could become a viable smartphone battery chemistry in the coming decade.
Sodium‑Ion Batteries
Sodium‑ion batteries work similarly to lithium‑ion cells but use sodium ions instead of lithium. Sodium is abundant and inexpensive—sodium hydroxide, a key raw material, is significantly more cost‑effective than lithium hydroxide. Sodium‑ion cells have lower energy density and are often compared to lithium‑iron‑phosphate batteries; they are better suited for stationary storage or applications where weight is less critical.
One advantage is safety: sodium‑ion cells do not pose the same fire risks as lithium‑ion and can operate over a wider temperature rangedriveelectrictn.org. BYD, a Chinese automaker, plans to use sodium‑ion batteries in microcars and other low‑range vehicles, but the technology has yet to prove itself in power‑hungry smartphones. Researchers continue to explore whether sodium‑ion could eventually provide a low‑cost alternative for mobile devices, especially in markets where lithium supply constraints drive up costs.
Graphene and Other Novel Materials
Graphene—a single‑atom‑thick sheet of carbon—conducts electricity extremely well and has enormous potential for battery applications. Battery University notes that graphene anodes could enhance the performance of lithium‑ion cellsbatteryuniversity.com. Some start‑ups are working on graphene‑enhanced lithium‑ion batteries that use a graphene sponge or graphene‑silicon composite to improve conductivity and prevent dendrite formation. While no major smartphone manufacturer currently ships graphene batteries, prototypes suggest these cells could charge faster and deliver higher power density than existing Li‑ion technology.
Other experimental chemistries include lithium‑titanate anodes that offer excellent low‑temperature performance and superior safety but lower energy densitybatteryuniversity.com, as well as aluminum‑ion and zinc‑air batteries. Most are still confined to laboratories and specialized niches.
Nuclear‑Diamond Batteries and Exotic Technologies
Nuclear‑diamond batteries (NDBs) made headlines when Chinese company Betavolt announced a coin‑sized battery purportedly capable of delivering power for 50 years by absorbing energy from radioactive decay. U.S. start‑up Infinity Power followed with claims of a 100‑year battery, also using diamond semiconductors. While the idea of a phone that never needs recharging is appealing, there’s a catch: early prototypes produce only 0.1 W of power—far below the multiple watts required for even basic smartphone functions. Stacking hundreds of NDBs could theoretically power a phone, but the cost (around US$5,250 per cell) and safety concerns make this technology impractical for consumer electronicsandroidpolice.com. For now, nuclear‑diamond cells are better suited for low‑power sensors or space missions.
Supercapacitors
Supercapacitors store electrical energy in an electric field rather than through chemical reactions. They can charge and discharge extremely quickly and have a virtually unlimited cycle life. Samsung used a supercapacitor to power the S Pen in the Galaxy Note 10, because it charges in seconds and doesn’t degrade when kept at full charge. Researchers speculate that supercapacitors could one day charge phones almost instantly, but today’s supercapacitors hold far less energy than even small lithium‑ion cellsandroidpolice.com. Without a major leap in energy density, supercapacitors will remain complementary to batteries rather than replacing them in smartphones.
Charging and Battery Ecosystems
While new chemistries attract headlines, charging technology is also evolving. Most modern phones support fast wired charging (ranging from 20 W on iPhones to 240 W on some Android devices) and fast wireless charging (up to 80 W). Manufacturers achieve these speeds by splitting battery packs into multiple cells or using dual‑cell designs that can be charged in parallel. Advanced power‑management chips monitor each cell’s temperature and adjust current accordingly. Battery health features found in Android and iOS pause charging at 80 % when the phone is plugged in overnight to reduce long‑term stress on the cell.
When solid‑state and other next‑generation batteries arrive, they will pair with smarter charging algorithms to deliver both longevity and speed. In the meantime, using certified chargers, avoiding extreme temperatures and enabling Low Power Mode remain the best ways to protect your battery.
Frequently Asked Questions (FAQ)
How does a smartphone battery work?
A phone battery has a cathode, anode, and electrolyte. During discharge, lithium (or sodium) ions move from anode to cathode through the electrolyte while electrons flow through the external circuit to power the device. During charging, ions move back toward the anode to store energy batteryuniversity.com.
Why do batteries degrade over time?
Each charge cycle causes microscopic changes to electrodes. In lithium-ion cells, dendrites may form on the anode and the cathode’s crystal structure can degrade, reducing capacity. High temperatures accelerate these reactionsbatteryuniversity.com.
What is a solid-state battery and when will it reach phones?
Solid-state batteries replace liquid electrolyte with a solid one, promising higher energy density, improved safety, and faster charging zmescience.com. Prototypes exist, and early demos have appeared; mass-market smartphones are expected later this decade.
How do silicon-anode batteries compare to traditional lithium-ion?
Silicon can store far more lithium than graphite, boosting energy density. Because pure silicon swells when charged, manufacturers use silicon-carbon composites to balance capacity and durability batteryuniversity.com. Some recent phones already use this approach.
Are lithium-sulfur batteries environmentally friendly?
They avoid cobalt and nickel, using abundant sulfur instead, and promise higher energy density and lighter weight. Historically, poor cycle life was a challenge, but some companies report designs reaching thousands of cycles.
Could sodium-ion batteries replace lithium-ion in phones?
Sodium-ion cells are cheaper and use abundant materials, but currently have lower energy density. They’re better suited to stationary storage or low-range vehicles, though research continues for consumer electronics.
Do nuclear-diamond batteries mean phones will never need charging?
No. While they can run for decades by harvesting energy from radioactive decay, present prototypes deliver very low power (around fractions of a watt) and are extremely expensive—impractical for smartphones.
What’s the role of supercapacitors in smartphones?
Supercapacitors charge/discharge extremely quickly and last many cycles. They’re used for niche tasks (e.g., powering a stylus), but hold far less energy than batteries and won’t replace the main phone battery soon.
Conclusion
Lithium‑ion batteries have powered the mobile revolution for over three decades, but their physical limits are in sight. Emerging chemistries—solid‑state, silicon‑anode, lithium‑sulfur, sodium‑ion and graphene‑enhanced cells—promise longer life, faster charging, improved safety and lower environmental impact. Real‑world examples like Xiaomi’s solid‑state prototype and Huawei’s silicon‑carbon battery show that incremental breakthroughs are already trickling into consumer devices. Yet manufacturing challenges and costs mean most of these technologies won’t replace lithium‑ion overnight.
For the foreseeable future, the best way to extend your smartphone’s battery life is to understand how Li‑ion works and to adopt good charging habits. Enable Low Power Mode when needed, avoid extreme temperatures and follow FrediTech’s battery optimization guide for practical tips. As research progresses, future phones may last days on a single charge or even charge fully in minutes. Until then, staying informed about battery innovations ensures you can make smart choices when shopping for your next device and care for the one you already own.
