Upgrading Your Laptop Storage: A Comprehensive 2025 Guide to SSD, HDD, and Beyond

Why laptop storage upgrades matter in 2025

In today’s digital workflows, storage determines how fast your laptop boots, how smoothly apps launch, and how much data you can keep locally. SSDs (solid-state drives) deliver dramatically faster startup and app loads than HDDs, and moving from a small, slow drive to a larger, faster SSD is one of the highest-impact upgrades you can make. HP’s technical overview notes SSDs typically boot faster and launch apps more quickly than hard drives, improving day-to-day responsiveness. HP

When your storage runs low, modern operating systems offload memory pressure by swapping to disk—called the page file on Windows or swap on macOS. That keeps the system stable but is much slower than RAM, so performance can tank. Microsoft explains that page files extend “committed memory,” while Apple’s Activity Monitor shows “Swap Used” when your Mac is moving memory to disk. Microsoft LearnApple Support

For creators, gamers, and developers in Ghana and globally, 512 GB fills up quickly with raw photos, video caches, game installs, VMs, or code repos. Many reviewers now recommend 1 TB as a sensible baseline for gaming laptops, with more for heavy media work. Laptop Mag

{getToc} $title={Table of Contents} $count={Boolean} $expanded={Boolean}

Understanding Laptop Storage: SSD vs HDD

What Is an SSD?

A Solid‑State Drive (SSD) uses flash memory chips to store data, which eliminates the spinning disks and mechanical arm found in traditional drives. With no moving parts, SSDs read and write data electronically, enabling much faster access times than mechanical drives. A typical SATA SSD delivers read speeds around 500–600 MB/s, while NVMe (PCIe) SSDs exceed 3,000 MB/s. The advantages include:

• Speed: boot times drop from 30 seconds on an HDD to roughly 10 seconds on an SSD; applications launch almost instantly and data transfers fly.

• Durability: SSDs resist shock and vibration because there are no delicate moving parts.

• Silent operation and lower power: SSDs consume only 2–3 watts and operate silently, making them ideal for travel laptops and quiet offices.

• Longevity: Modern flash cells can retain data for decades; once written, data can remain intact well over 200 years.

What Is an HDD?

A Hard Disk Drive (HDD) stores data on spinning magnetic platters that rotate at 5,400–7,200 RPM (or up to 10 K RPM in enterprise models). A mechanical arm reads and writes data to these platters. Key properties include:

• Capacity: HDDs offer large storage at low cost; desktop drives often reach 4–6 TB, and enterprise models exceed 20 TB.

• Cost: HDDs are 3–5 × cheaper per gigabyte than SSDs.

• Slower performance: sequential read/write speeds are only about 30–150 MB/s, and random access is much slower due to mechanical movement. Booting the OS and launching apps take noticeably longer.

• Noise and vibration: the spinning platters and moving head create audible whirring and small vibrations.

• Mechanical fragility: dropping a laptop with a spinning HDD can cause head crashes and permanent data loss, making them less ideal for portable machines.

Choosing Between SSD and HDD

The choice depends on your needs:

• Performance‑oriented users (developers, gamers, video editors) should prioritise an SSD. The speed difference is substantial: a SATA SSD cuts boot and load times to a fraction of HDD values, and NVMe drives go further. Upgrading to an SSD also improves multitasking; the OS doesn’t need to thrash between slow disk reads and writes.

• Storage‑hungry users (photographers, archivists) may prefer an HDD for bulk storage, as the cost per terabyte is much lower. Many professionals use a hybrid approach: install an SSD for the operating system and frequently used programs, and add a large HDD for photos, videos, and backups.

• Budget considerations: if your budget is tight, a moderately‑sized SSD (e.g., 512 GB) paired with external or cloud storage is a good compromise.

• Environmental factors: If you travel with your laptop or use it in a vehicle, SSDs are more robust due to their resistance to shocks and lower power draw.

Tip: check FrediTech’s SSD vs HDD comparison for detailed reviews and recommendations.

Preparing for a Storage Upgrade

Before replacing your laptop’s drive, follow these preparatory steps:

1. Identify the drive form factor and interface: Check your laptop model’s documentation or FrediTech’s Laptops category to see if it uses a 2.5‑inch SATA drive or an M.2 (SATA or NVMe) module. The wrong form factor won’t fit.
2. Check maximum supported capacity: Some older laptops can only recognise drives up to a certain size. Review the manufacturer’s specifications or search the model number online.
3. Back up your data: Back up all important files to an external drive or cloud storage. Although the installation process doesn’t delete data, having a backup safeguards against mistakes.
4. Gather tools: You’ll need a precision screwdriver set, an anti‑static strap and (for 2.5‑inch SSDs) possibly a mounting bracket. Many laptop upgrades only require removing a back cover.
5. Download or clone your OS: Decide whether to perform a clean install or clone your existing drive. Cloning tools (e.g., Macrium Reflect, Clonezilla) copy your OS and data to the new drive and maintain the same partition structure. Clean installations can remove software clutter and deliver the best performance.

Recognising When to Upgrade

How do you know it’s time to upgrade your storage? Watch for these signs:

1. Frequent “low disk space” warnings – When your OS constantly warns that your drive is almost full, performance suffers because the system can’t allocate temporary files efficiently.
2. Slow boot times and sluggish performance – If your laptop takes minutes to start up or freezes when opening multiple applications, the drive might be bottlenecking your system. Upgrading can reduce boot time to just seconds.
3. High disk usage in Task Manager – Constant 100% disk usage indicates your drive is struggling to keep up. This often happens when RAM is limited and the system uses virtual memory.
4. Unusual noises (for HDDs) – clicking or grinding sounds may signal a failing HDD. Back up immediately and consider replacing it with an SSD.
5. Specialised needs – If you are moving into video editing, gaming or virtual machines, you’ll benefit from the speed and responsiveness of a larger SSD.

If any of these issues sound familiar, it’s time to consider an upgrade.

Choosing the Best Drive

When selecting a new storage drive, consider these factors:

Drive Type (SSD vs HDD)

We covered the fundamentals earlier. For laptops, SSDs are usually the better choice, providing faster boot times, silent operation and better battery life. HDDs are attractive if you need 2 TB or more at low cost. External drives can handle extra storage; you can keep the internal drive small and fast.

Interface: SATA vs NVMe

• SATA SSDs: Use the same interface as HDDs. They’re plug‑and‑play for most laptops. Read/write speeds are roughly 500–600 MB/s —a huge improvement over HDDs but slower than NVMe.Western Digital Documents, content.crucial.com

• NVMe (PCIe) SSDs: These drives use a PCI Express bus, delivering speeds above 3 GB/s. NVMe drives come in M.2 form factor and sometimes PCIe Add‑In Cards for desktops. Check if your laptop’s M.2 slot supports NVMe; some only support SATA M.2. NVMe drives are especially beneficial for heavy workloads (video editing, large file transfers) and gaming.

• NVMe M.2 SSD (best speed for most laptops)

• Pros: Multi-GB/s speeds thanks to PCIe lanes; snappier boots and app loads than SATA. Crucial’s primer explains NVMe’s lane advantage. Crucial
• Example specs: Samsung 990 PRO (Gen4) up to 7,450/6,900 MB/s (R/W). download.semiconductor.samsung.com

• PCIe Gen5 NVMe (bleeding edge)

• Pros: Peak sequential speeds >10 GB/s, great for heavy scratch-disk workloads. Crucial’s T700 lists up to 12,400 MB/s. Crucial
• Cons: Higher power/heat, cost, and you must have a Gen5-capable platform.

Tip: If your laptop only supports SATA, a quality SATA SSD still feels transformative versus an HDD. If it supports NVMe, choose Gen4 for the best value in 2025.

Capacity and Budget

• 256 GB: Sufficient for basic usage (documents, web browsing). Upgrading to 512 GB is often worth the extra cost because operating systems, software and games occupy more space now.

• 512 GB – 1 TB: Ideal for most users. Games, media libraries and professional applications fit comfortably.

• 2 TB or higher: For video editors, photographers, or heavy gamers. NVMe drives above 2 TB are more expensive; some professionals pair a 1 TB NVMe drive with a large external HDD.Laptop Mag

Top Models and Brands (2025)

Drive	Type	Key features	Ideal for
Samsung 990 Pro	PCIe 4.0 NVMe	7,450 MB/s read speeds; excellent endurance; suitable for heavy editing and gaming	Professionals, gamers
WD Black SN850X	PCIe 4.0 NVMe	Very high read/write speeds; heatsink option; good price/performance ratio	Gamers, power users
Crucial P3 Plus	PCIe 4.0 NVMe	Budget‑friendly NVMe; solid performance; good for first‑time upgraders	Mainstream users
Samsung 870 EVO	SATA SSD	Reliable, widely compatible 2.5″ SSD; up to 4 TB; excellent for older laptops	Everyday use, OS drive
Crucial MX500	SATA SSD	Affordable SATA with good performance and reliability; includes cloning software	Budget upgrades
Seagate Barracuda 2 TB HDD	2.5″ HDD	High capacity at low cost; 5,400 RPM; fits most laptops	Bulk storage, backups
Western Digital Blue 1 TB HDD	2.5″ HDD	Budget storage; slower but cost‑effective	Large data storage

Step‑by‑Step Guide to Upgrading Your Laptop Storage

Upgrading your laptop’s storage involves opening the laptop, installing a new drive and (optionally) cloning data. Below is a detailed guide applicable to most laptops:

1. Shut Down and Prepare

• Backup: Copy all important files to an external drive or cloud service.

• Power off and unplug: Shut down the laptop and unplug it from AC power. If your laptop has a removable battery, remove it. Hold the power button for 5 seconds to discharge residual electricity.

• Ground yourself: Use an anti‑static wrist strap or touch a grounded metal object to discharge static electricity. Static can damage sensitive components.

• Gather tools: You’ll need a small Phillips screwdriver, plastic spudger (for opening clips) and the new SSD or HDD. Keep track of screws; some laptops use different lengths.

2. Access the Existing Drive

• Remove the bottom panel: Many laptops have a dedicated service door with a small screw; others require removing the entire bottom cover. Use the screwdriver to remove screws and gently pry off the cover. If there is no panel, consult the manufacturer’s guide.

• Locate the drive: In most 13″ and 15″ laptops, a 2.5″ drive sits in a bracket secured by one or two screws. M.2 SSDs are small, gum‑stick shaped modules held by a single screw on the motherboard. Identify the drive type and note the connection.

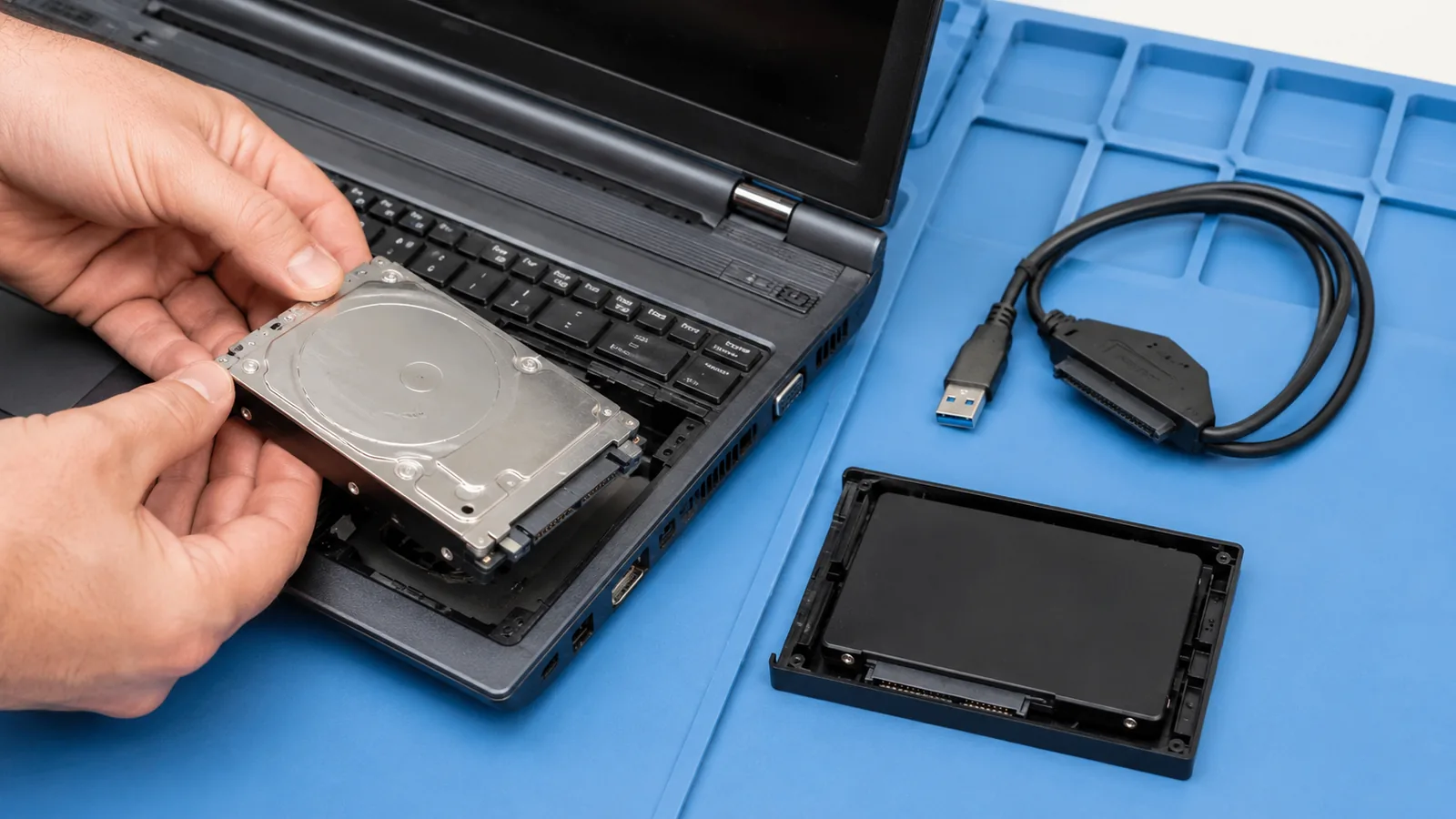

3. Remove the Old Drive (if replacing)

• 2.5″ SATA: Disconnect the SATA cable and unscrew the bracket. Slide the drive out gently. Remove the drive from the caddy or bracket and set aside.

• M.2 (NVMe or SATA): Remove the single screw holding the drive. The module will spring up slightly; slide it out at an angle.

4. Install the New Drive

• Insert the drive: Align the connector on the new drive with the slot. For M.2 drives, insert at a 30° angle and press down, then secure with the screw. For 2.5″ SSDs or HDDs, mount the drive into the bracket, slide it into the SATA connector, and screw it in place.

• Replace cover: Reattach any caddies or brackets. Replace the bottom panel or service door and tighten screws. Reinstall the battery if removed.

5. Configure the System

• Boot and enter BIOS: Power on the laptop. Enter the BIOS/UEFI (usually by pressing F2, DEL or F10) and verify the new drive is detected. If installing a second drive, set the SSD as the primary boot device.

• Install or clone OS: Insert your bootable OS installer or connect a cloning cable. For a clean installation, boot from the installer USB and follow prompts to install the OS onto the new drive. If cloning, use migration software to copy your old drive’s contents to the new one; many SSDs include free cloning tools.

• Activate TRIM: Operating systems like Windows 10/11 enable TRIM automatically for SSDs; verify this to optimise SSD longevity and performance.

• Reboot and update: After installation, check for firmware or BIOS updates that improve compatibility and performance for your new drive.

6. Securely Erase the Old Drive

If you plan to reuse or sell the old drive, erase data securely. HDDs require multiple overwrite passes or degaussing to ensure data is unrecoverable. SSDs support secure erase commands (via tools like Secure Erase from drive manufacturers). Always wipe sensitive data before recycling.

Post‑Upgrade Optimization and Maintenance

• Monitor health: Use drive monitoring tools (CrystalDiskInfo, Samsung Magician, smartmontools) to check temperature, health status and remaining life.

• Keep firmware up to date: Vendors periodically release firmware updates for SSDs that enhance stability and performance.

• Enable encryption: Protect data with disk encryption (BitLocker on Windows, FileVault on macOS). This ensures if the laptop is lost, data remains secure.

• Manage drive space: Avoid filling the drive past 80–90%. SSDs use spare area for wear levelling; leaving space helps maintain speed and longevity.

• Backup regularly: Even new drives can fail. Maintain a backup routine to external drives or cloud storage.

Step-by-step: upgrade by cloning your old drive

Best for: keeping your OS, apps, and files exactly as they are.

1. Back up first.

• Use Time Machine on macOS or your preferred backup on Windows before any disk work. Apple Support

2. Connect the new SSD externally.

• Plug your new SSD into a USB enclosure/adapter. Crucial’s install series shows SATA-to-USB connections for cloning. Crucial

3. Start the cloning tool.

• Macrium Reflect: Choose source (old drive) → Clone this disk… → choose destination (new SSD). Macrium Software

4. Resize partitions if needed.

• Expand the OS partition to use the full capacity of the new drive.

5. Shut down and swap drives.

• Carefully open the laptop, remove the old drive, and install the new one (2.5-inch or M.2 as applicable). Crucial’s laptop SSD guide walks through the steps with photos. Crucial

6. Boot and verify.

• Enter BIOS/UEFI if necessary to set the new SSD as the boot device.

Step-by-step: upgrade with a clean install

Best for: removing old clutter, major OS issues, or platform changes.

1. Make a verified backup of documents and licenses.

2. Create official install media.

• Windows 11: Microsoft’s Media Creation Tool (USB, 8 GB+). Microsoft
• macOS: Use macOS Recovery to reinstall the latest compatible version. Apple Support

3. Physically install the SSD.

4. Boot from the installer (USB).

5. Install OS, drivers, and apps, then restore your files (Time Machine or manual).

After the upgrade: performance tune-up & health

• Check Windows “Optimize Drives.”

• Windows handles SSD optimization automatically, and you can check or adjust schedules in the Optimize Drives utility. Microsoft Support

• Confirm TRIM is active (Windows).

• fsutil behavior query DisableDeleteNotify returns 0 when TRIM is enabled. Microsoft Learn

• Update SSD firmware.

• Use the manufacturer’s tool (Samsung Magician, WD Dashboard, Crucial Storage Executive) for reliability and performance updates. (See vendor docs referenced above.) Western Digital DocumentsCrucial

• Move big libraries off the C: drive.

• Storing raw photos or video caches on a secondary internal/external SSD keeps your system partition lean and fast. A portable SSD like Samsung’s T7 is a good scratch drive (~1,050 MB/s). Samsung Semiconductor Global

---

Real-world examples

• Budget productivity laptop (SATA-only): Swap a 1 TB WD Blue or Crucial MX500 SATA SSD (~560 MB/s) for a dramatic daily speed boost over HDD without compatibility headaches. Western Digital Documentscontent.crucial.com

• Creator laptop with NVMe slot: Install a 2 TB PCIe Gen4 drive (e.g., Samsung 990 PRO) for multi-GB/s media workflows and faster previews/renders.

• Travel-heavy workflow: Keep projects on an external T7 (USB 3.2 Gen 2) for plug-and-play edits in cafés between Accra and Kumasi, then archive to a larger internal NVMe back at the office. Samsung Semiconductor Global

• Repairable-by-design laptops: Framework’s official storage replacement guides make upgrades straightforward—ideal if you expect your storage needs to grow over time. knowledgebase.frame.work

Security & data protection

• Backups: Follow a layered backup strategy (local + cloud). Time Machine on macOS is simple to set up and restore. Apple Support

• Encryption: Many SSDs (e.g., Crucial MX500) support hardware-based encryption (TCG Opal/Microsoft eDrive). Enable BitLocker (Windows Pro) or FileVault (macOS) after installing. Crucial

Related FrediTech guides

• See more how-tos and buyer’s guides on FrediTech.

• New to storage terms? Check our foundational tips on laptop upgrades.

---

Conclusion

Upgrading your laptop’s storage is a powerful way to enhance performance, responsiveness and capacity. While HDDs still offer unbeatable cost per gigabyte, SSDs deliver dramatic speed improvements, lower power consumption and greater resilience. For most users in 2025, installing an SSD (either SATA or NVMe) is the most impactful upgrade you can make.

When planning an upgrade, evaluate your current and future storage needs, confirm compatibility, and carefully follow the installation steps. A successful upgrade breathes new life into your machine – programs load in a flash, files transfer quickly and your laptop feels like new.

---

FAQs About Laptop Storage Upgrades

Is NVMe really faster than SATA for everyday use?

Yes. NVMe uses PCIe lanes for multi-GB/s performance and far lower latency than SATA. You’ll notice faster boots, app launches, and large file transfers. NVMe’s multi-lane design outpaces SATA significantly.

How do I know if my laptop’s M.2 slot supports NVMe?

Check your service manual or vendor page and the M.2 keying. NVMe drives are usually M-keyed, while SATA-M.2 often uses B or B+M keys. Verify before purchasing to ensure compatibility.

I have a thin ultrabook. Can I still upgrade storage?

Some ultraportables (like M2 MacBook Air) have soldered storage that cannot be upgraded. Always check teardowns or official documentation before buying parts.

What size SSD should I buy?

For most users, 512 GB–1 TB provides good longevity. Gamers and creators should aim for 1–2 TB to avoid file juggling. Many experts recommend at least 1 TB for modern systems.

Should I clone or clean install?

Cloning is fastest and preserves your exact setup. Clean installs are better if you want a fresh start or are switching platforms. Use official Microsoft Media Creation Tool or macOS Recovery for reinstalling.

Do I need to “enable TRIM” on Windows?

No. Windows 10/11 manage TRIM automatically. You can verify with a quick command in the console—if it returns “0,” TRIM is enabled.

Are external SSDs a good alternative to upgrading internally?

Yes. Portable SSDs like Samsung’s T7 (~1,050 MB/s over USB 3.2 Gen 2) are great for photo catalogs, project storage, and file transfers. Internal NVMe still wins for OS and app speed.

Can any laptop be upgraded with an SSD?

Most modern laptops can accept a 2.5″ SATA or M.2 drive. However, ultra-slim models with soldered storage may not be upgradeable. Always check your model’s manual or contact the manufacturer.

Do I need a fresh OS install when upgrading?

Not necessarily. Cloning is convenient and keeps your current OS, apps, and files. A clean install is better for removing old clutter and ensuring optimal performance.

Will upgrading storage void my warranty?

Most manufacturers (HP, Dell, Lenovo, etc.) allow user-replaceable storage upgrades. If you follow guidelines and avoid damage, your warranty should remain intact. Always confirm with your warranty terms.

What’s the difference between PCIe 3.0, 4.0, and 5.0 NVMe SSDs?

These indicate PCI Express generations. PCIe 3.0 NVMe drives reach ~3,500 MB/s, PCIe 4.0 up to ~7,500 MB/s, and PCIe 5.0 exceeds 12,000 MB/s. Drives are backward-compatible but limited by your laptop’s supported version.

Is an external drive a good alternative to an internal upgrade?

Yes. External SSDs (via USB-C or Thunderbolt) provide additional storage without opening your laptop. They’re slower than internal NVMe but faster than HDDs, perfect for backups or large file transfers.

How long do SSDs last?

Consumer SSDs usually last 5–10 years. Research shows SSDs fail less often than HDDs. Modern SSDs can handle hundreds of terabytes of writes, making them reliable for daily use.

What should I do with my old drive?

You can repurpose it as an external drive with a USB enclosure, use it for backups, or wipe and recycle it responsibly.

---
