Live Cell Imaging: Tips for Success in Microscopy

Live-cell imaging (also called time-lapse microscopy) is the study of living cells over time without fixing or killing themen.wikipedia.org. It enables scientists to observe cellular processes – such as cell division, migration and signaling – in their native state. This powerful technique is increasingly vital for fields from cancer research to drug discovery. Indeed, the global live-cell imaging market is booming: it was about $2.5 billion in 2023 and is expected to nearly double by 2030grandviewresearch.com. However, real-time imaging poses special challenges: cells must stay healthy under the microscope while high-quality images are captured. This guide provides step-by-step best practices and tips to maximize success in live-cell microscopy, covering equipment setup, environmental control, imaging parameters, labeling strategies, and troubleshooting.

{getToc} $title={Table of Contents} $count={Boolean} $expanded={Boolean}

---

1. Choosing and Preparing Your Equipment

• Use an inverted microscope for cell culture: For live cells grown in culture dishes or flasks, inverted microscopes (with the objective lens below the stage) are idealfreditech.com. Inverted scopes allow room for dishes and incubator chambers above the stage. As FrediTech notes, “microscopes [are] essential for visualizing cells and structures,” and digital microscope systems can send images to a screen for collaborative viewingfreditech.com. Many modern live-cell setups are fully digital: for example, digital microscopes use a camera instead of an eyepiece, projecting images onto a monitor so multiple users can view and annotate themfreditech.com. This digital workflow streamlines documentation and analysis, which is crucial for complex live experiments.

• Ensure stable mechanical setup: Mount your microscope on a rigid anti-vibration table to avoid drift or blur. Avoid placing the system near heavy equipment or air vents that could shake the stage. Even slight vibrations or temperature changes can cause focus driftmicroscopyu.com. Let the entire imaging setup (microscope, stage top incubator, objectives) warm up and equilibrate at imaging temperature (typically 37°C) for at least 30 minutes before starting experimentstechnologynetworks.com. This prevents mechanical shifts; for example, Keyence recommends “perform warm-up with an empty container for 30 minutes” before inserting cellskeyence.com. Also, avoid air conditioning drafts blowing on the microscope – localized airflow can create temperature fluctuations and focus drift.

• Maintain precise stage control: Use a high-quality motorized stage or micrometer controls to position samples. If doing long-term time-lapses, stage drift can ruin data. Some systems (e.g. Nikon’s Perfect Focus) include active focus locks to keep the focus plane fixedmicroscopyu.com. At minimum, test your setup with fixed samples to ensure sub-micron stability over time.

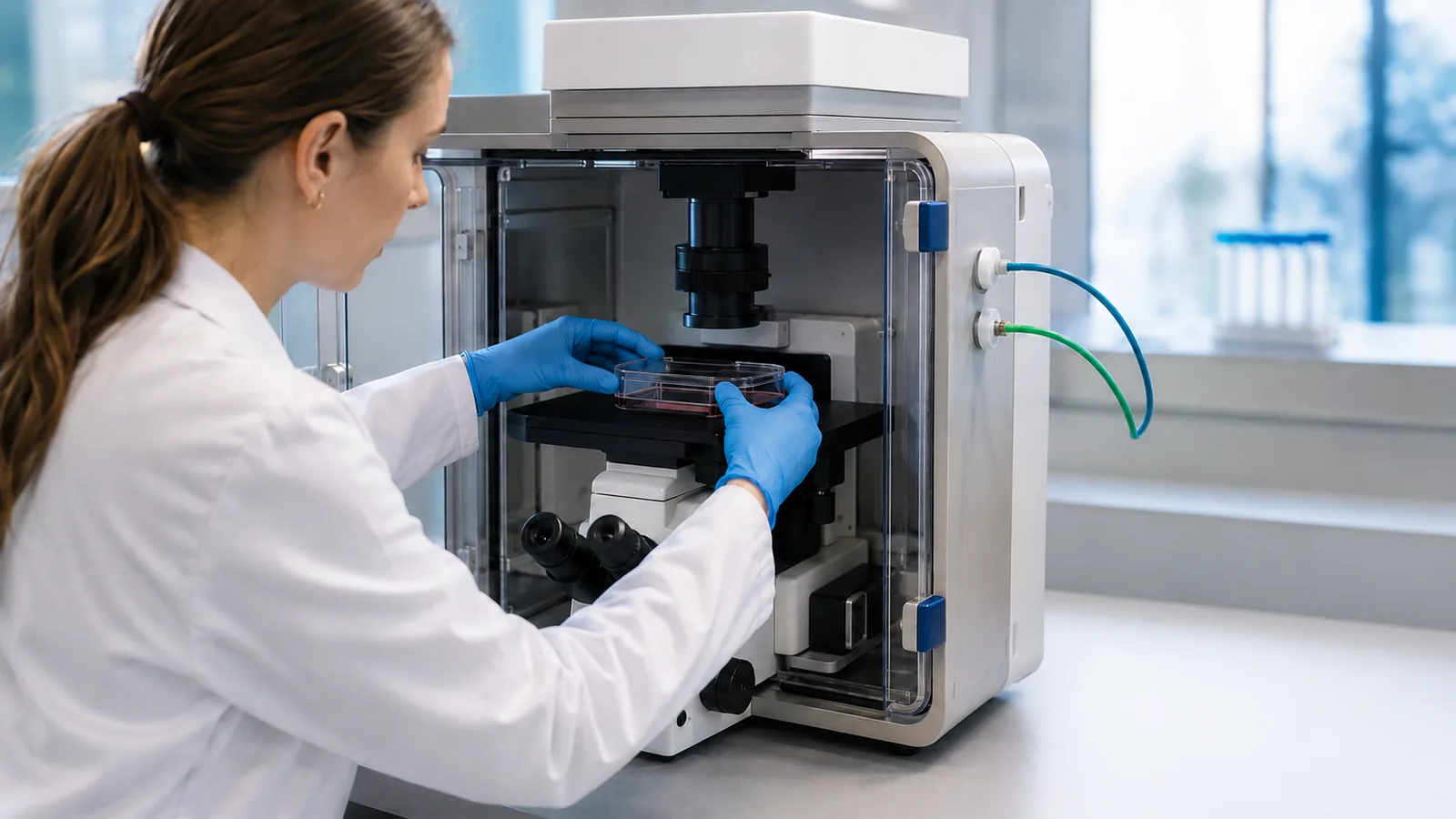

• Environment-controlled chamber: Equip the microscope with an incubation chamber or stage-top incubator that provides a controlled atmosphere. Most mammalian cells require 37°C, ~5% CO₂ and high humiditykeyence.com. Keyence notes that human cells often “require a temperature of 37°C, a carbon dioxide concentration of 5%, and humidity of 95%” for viability. These conditions mimic the standard tissue-culture incubator. The chamber material should be optically clear (e.g. glass or clear plastic) to avoid image distortion. Ensure any tubing (for CO₂) is properly connected and leak-free. Humidity can be maintained by placing a water reservoir or wet sponge inside the chamber to reduce evaporation, as recommended by Keyencekeyence.com. If the room itself fluctuates in temperature, use a room thermostat or isolate the microscope in an enclosure to minimize swings.

• Sterile technique: Prevent contamination at all stages. Work quickly and aseptically when handling cells. Sanitize pipettes, culture dishes, and chamber surfaces. Keyence advises: “When performing the experiment, ensure that there are no germs transferred from the used container to the pipette or other equipment”keyence.com. Contaminants (bacteria, fungi or mycoplasma) can quickly overrun cultures. If necessary, include low doses of antibiotics or antimycotic agents in the imaging media, though these can sometimes affect cells. Always check cultures for contamination before imaging.

• High-quality optics: Use a high numerical-aperture (NA) objective for best resolution, but remember that higher NA means shallower depth of field (more focus drift risk) and often requires immersion oil or water. Keep objective lenses clean and free of immersion oil leaks. For long-term live imaging, air objectives (dry) are simpler because immersion fluids can evaporate or change refractive index over time. If you must use oil/water objectives, use sealed chambers and consider objective heaters to maintain constant lens temperature, as Nikon recommendsmicroscopyu.com. Also use plan-apochromatic lenses to minimize aberrations and phototoxicity.

• Camera and sensors: Use a camera with high sensitivity (low noise and high quantum efficiency) since live-cell signals can be dim. Modern CMOS or sCMOS cameras are popular. Keyence suggests using “a high-sensitivity cooled monochrome camera” for minimal damagekeyence.com. Bin mode (pixel binning) can improve signal-to-noise at the cost of resolution. Match the camera’s pixel size to the microscope’s magnification so you sample at or above Nyquist (at least two pixels per smallest resolvable feature)freditech.com.

• Software and autofocus: If available, use live autofocus or Z-stack functions to keep cells in focus as they move or dividetechnologynetworks.com. Nikon notes that focus drift is a common failure mode in time-lapse imaging. Autofocus systems (laser/LED-based) or periodic Z-stack adjustments can correct drift without overly exposing cells. Plan for periodic auto-focus or small Z-stack acquisitions. When using autofocus, confine the Z-range to the expected cell thickness to avoid unnecessary light exposurekeyence.com.

2. Preparing Your Cells and Samples

• Healthy cell culture: Start with robust, actively growing cells. Check cells the day before for normal morphology and confluence (~50-70% for long-term imaging). Avoid over-confluent or nutrient-starved cultures. Culture cells in appropriate medium (phenol red-free if possible, to avoid background fluorescence)technologynetworks.com. For sensitive experiments, consider using specialized live-cell imaging media that have stable pH (HEPES-buffered) and minimal autofluorescence. As Technology Networks recommends, adding HEPES buffer can maintain pH if you can’t supply CO₂technologynetworks.com.

• Cell labeling: Label cells with non-toxic fluorescent markers. Fluorescent proteins (e.g. GFP, mCherry) are popular: they integrate into the cell’s proteins and usually remain stable for hours. Chemical dyes (like Calcein-AM or CellTracker dyes) can stain compartments without genetic modification. Crucially, avoid “over-labeling.” Excess dye leads to background noise, spectral bleed-through and toxicity. The expert guide advises: “Avoid over-labeling cells with fluorescent dyes as this can result in non-specific staining, increased background signals…and possible cytotoxicity”technologynetworks.com. Use the minimal dye concentration that still gives a clear signal. If possible, choose red or far-red fluorophores: longer wavelengths (e.g. 600–700 nm) excite the sample less and reduce phototoxicity. Also use bright and photostable dyes (e.g. Alexa Fluor series, quantum dots, or newer near-infrared dyes) to get good signal with less light exposure. Always verify that your fluorescent tag and filter set do not have unwanted overlap.

• Minimize autofluorescence: Use glass-bottom culture dishes instead of plastic (plastic can fluoresce under certain wavelengths)technologynetworks.com. Switch to phenol-red-free media during imaging, or add activated charcoal to remove phenol red. Keep serum levels as low as feasible (serum proteins can autofluoresce). Proper washing or media exchange before imaging can also reduce background.

• Chamber preparations: Plate cells on imaging-friendly vessels (glass-bottom dishes or well plates). For adherent cells, coat surfaces with collagen or poly-D-lysine if needed to ensure they stay attached. If using suspension cells, immobilize them (e.g. in agarose or by mild centrifugation) so they don’t drift. Before imaging, remove bubbles and debris from the chamber, as these can focus light and cause imaging artifacts.

3. Establishing Stable Imaging Conditions

• Maintain physiological environment: As noted, keeping cells happy is paramount. Nikon’s MicroscopyU stresses that “tight control of the environment is one of the most critical factors in successful live-cell imaging experiments”microscopyu.com. This means exactly matching incubation conditions: 37°C temperature, ~5% CO₂ for buffer equilibrium, and high humidity. Use a well-calibrated temperature sensor. Verify CO₂ concentration if possible. If your system doesn’t control CO₂, compensate by using HEPES-buffered mediatechnologynetworks.com and by minimizing evaporation (e.g. sealing plate edges with vacuum grease or using oil overlays in droplet cultures).

• Humidity control: Evaporation can be a silent killer. Even a small drop in medium volume will change osmolarity. Keep a water reservoir in the chamber (Keyence suggests it to maintain humiditykeyence.com). Some labs also cover wells with mineral oil (for oil-compatible setups). Check media height occasionally through non-invasive means. High humidity (≥90%) prevents drying; many chambers have built-in humidity ports.

• Stable pH: Cells are sensitive to pH. If you have CO₂ control, standard bicarbonate-buffered medium is fine. Without CO₂, rely on HEPES buffer (25 mM is common) to hold pH 7.2-7.4technologynetworks.com. Measure pH before and after experiments if possible. Also keep media temperature consistent to avoid pH shifts.

• Avoid contamination: We already stressed sterility, but it bears repeating: any bacterial or fungal contamination will wreck a live imaging session. Work in a sterile hood, and always check cells under a quick microscope scan for contamination. Use antibiotics if necessary but be aware they can stress cells.

• Minimize mechanical disturbances: Once cells are on the microscope, don’t touch the stage unnecessarily. The Keyence guide suggests moving the cell “as little as possible” during imagingkeyence.com. Avoid re-focusing manually; if you do, wait for 10-15 minutes after moving the stage or lid to let temperature re-equilibrate.

4. Optimizing Imaging Parameters

• Use the lowest viable illumination: Any light exposure can cause phototoxicity and bleaching. To minimize this, use the lowest light intensity that still produces a clear imagetechnologynetworks.com. Many modern systems allow very dim illumination paired with high-sensitivity cameras. Also use fast shuttering or LED pulsing to only light the sample during capture.

• Short exposures and reduced frame rate: Keep exposure times as brief as possible. Use the camera’s gain (or EM gain if applicable) to brighten signal rather than lengthening exposure. As a rule, only capture at the minimum frame rate needed for your biology (e.g. one frame every 5 seconds instead of video rate if cell movements are slow). Technology Networks advises reducing frame rate and capturing images “for the shortest possible time”technologynetworks.com.

• Choose gentle imaging modality: If your microscope is capable, consider techniques designed to minimize photodamage. For example, widefield fluorescence is simpler, but spinning-disk confocal or light-sheet microscopy can limit light exposure compared to point-scanning confocaltechnologynetworks.com. Light-sheet fluorescence microscopy (LSFM) in particular illuminates only the focal plane and is very gentle for thick or 3D samples. If only a widefield system is available, use gentle filter cubes with high transmission and minimal bleed-through, and avoid heavy excitation filters.

• Longer wavelengths and narrow-band filters: Use excitation filters that only allow as much light through as needed for the fluorophore. When possible, use green, red or far-red fluorophores (e.g. GFP/mCherry) rather than UV or blue dyes; longer wavelengths (≥ 500–600 nm) do less photodamagebitesizebio.com.

• Camera settings – binning and gain: If the signal is dim, increase camera gain or use binning (combining neighboring pixels) to boost sensitivitykeyence.com. Binning trades resolution for sensitivity but can allow you to use lower light intensity. For example, bin 2×2 if single-pixel mode is too noisy.

• Opt for larger depth-of-field when possible: At high magnification and high NA, the depth-of-field is very thin, making focus drift more apparent. If your experiment can tolerate it, using a slightly lower magnification or a smaller NA (e.g. a 20× 0.8 NA instead of 40× 1.3 NA) increases depth-of-field and reduces the chance of going out-of-focuskeyence.com. Keyence suggests using a “low-magnification lens with a large depth of field” to avoid losing focus.

• Limit the imaging duration: Plan experiments so that cells are under the microscope only as long as needed. For processes that take hours or days, set the imaging interval to capture at biologically relevant time points (e.g. every 5 minutes instead of every 30 seconds) to give cells recovery time. At the end of each imaging session, promptly return cells to the incubator if further growth is needed.

5. Capturing Data and Real-World Considerations

• Pilot experiments: Before investing a week in a big time-lapse, do a short pilot run. Image your cells for 30-60 minutes with your planned settings. Check for signs of stress (cell rounding, blebbing or slowed division) and focus stability. Use a test region or fixed sample (e.g. fluorescent beads) to verify system stability.

• Monitor focus and field-of-view: For long experiments, it’s common for cells to drift or move out of view. To catch problems early, periodically inspect images (if possible, have another researcher or an automated system flag frames). If cells wander, consider using software to track and re-center them during acquisition (many live-imaging platforms offer multi-position tracking). Also set sufficiently large imaging boundaries at start – for example, Keyence warns that “the longer the shutter is kept open, the greater the chance the cell moves out of the field”keyence.com. Using a wider field (lower magnification) reduces this risk.

• Example – cell tracking systems: Some labs use autofocus or feedback systems to keep cells in frame. For instance, automated microscopes can detect cell positions and nudge the stage to keep cells centered in each frame. This level of automation (often seen in high-content screening systems) is costly, but greatly increases data quality in long time-lapsestechnologynetworks.com. Even if your microscope isn’t fully automated, scripting or using multi-position timelapse routines can help.

• Data management: Live-cell imaging generates large datasets. Plan for storage and backups. Label and document conditions (temperature, medium, labels) in metadata. Use systematic file naming (e.g. YYYYMMDD_experiment_condition_timestep). Many labs find it useful to integrate images into a database or lab notebook immediately.

6. Common Pitfalls and Troubleshooting

Even with preparation, live imaging can hit snags. Here are common issues and remedies:

• Cells are dying or unhealthy: Likely causes are phototoxicity, poor environment, or toxic reagents. Countermeasures:

• Reduce light exposure: Halve the lamp intensity or shorten exposurestechnologynetworks.com.
• Optimize media: Ensure CO₂/pH levels are correct; consider adding HEPEStechnologynetworks.com. Use specialized live-cell imaging medium if available.
• Check labeling toxicity: Fluorescent dyes and transfection reagents can be harmful. Lower dye concentration or try a gentler label (e.g. genetically encoded FP instead of dye)technologynetworks.com.
• Add antioxidants: Some researchers add scavengers (e.g. ascorbate) to reduce reactive oxygen species.
• Limit experiment duration: If cells deteriorate after a certain time, shorten imaging.

• Photobleaching of the signal: If fluorescence fades quickly:

• Use more photostable fluorophores or longer wavelengthsbitesizebio.comtechnologynetworks.com.
• Minimize exposure and use neutral density filters.
• Employ anti-fade media supplements (many exist for live cells).
• Binning and high-sensitivity cameras can allow dimmer illumination.

• Out-of-focus images (focus drift): Common in time-lapse. Fixes:

• Warm up system fully before starting (see above)keyence.com.
• Use autofocus periodicallykeyence.comtechnologynetworks.com.
• If consistent drift occurs, adjust focus manually once mid-run and restart if necessary.
• If allowed by software, reduce time interval slightly to let feedback keep up.

• Cells moving out of view: If cells migrate away:

• Begin with a broader view (wider frame or multiple positions).
• Use gentle confinement (e.g. do imaging on smaller fields or smaller dishes).
• Increase frame rate so movements can be tracked.
• In the worst case, accept that highly motile cells (like some immune cells) may not be suitable for long-term imaging without trapping them (e.g. in microfluidic chambers).

• High background/noise: Causes can be autofluorescence, misaligned optics, or improper camera settings. Fixes:

• Switch to glass-bottom dishes and clear mediatechnologynetworks.com.
• Ensure filters are correct (no leak-through).
• Clean optics (lenses, filter cubes).
• Use proper camera binning/gain to optimize signal.
• Dark-subtract or flat-field correct images if needed.

• Uneven illumination: Check that Köhler illumination (if using trans-illumination) is aligned. For fluorescence, ensure even excitation (check LED/arc lamp alignment). Poor alignment can cause shading.

7. Step-by-Step Summary (Checklist)

1. Plan the Experiment: Define goals and duration. Culture healthy cells; plan labels and feeding schedule.
2. Set Up Environment: Pre-warm microscope and chamber; prepare imaging medium (HEPES buffer or CO₂), humidify chamber.
3. Adjust Optics: Insert appropriate objective (inverted if using dishes), align light path, set Köhler.
4. Configure Camera: Choose binning and exposure to balance brightness and noise. Enable autofocus/Z-stack if needed.
5. Label Cells Carefully: Apply fluorescent markers at safe concentrations; wash off excess.
6. Run a Pilot: Do a short live-preview to confirm focus and conditions.
7. Start Time-lapse: Begin acquisition, minimizing light (lowest intensity & shortest exposure). Schedule intervals as needed.
8. Monitor Occasionally: Check status of cells and focus. Don’t disturb environment.
9. Post-Processing: After imaging, check for drift or bleaching, and correct data (align frames, subtract background).
10. Document Everything: Record all settings, reagents, and timing for reproducibility.

Each of these steps can be revisited during the experiment to make adjustments.

8. Related Resource

For more on microscopy equipment and features, see FrediTech’s resources: our

• Complete Guide to Digital Microscopyfreditech.com covers modern microscope technology, [

• Lab Equipment Guidefreditech.com emphasizes why choosing the right microscope (including inverted and fluorescence capabilities) is critical in life sciences.

Conclusion

Live-cell imaging is a powerful but demanding technique. Success hinges on keeping the cells alive and happy while capturing clear, informative images. Key strategies include using the right hardware (e.g. inverted microscope and environmental control), minimizing light exposure, and carefully planning and monitoring experiments. By following the best practices above – tight environmental controlmicroscopyu.comkeyence.com, gentle illuminationtechnologynetworks.comtechnologynetworks.com, and robust preparation – researchers can greatly improve the quality and reliability of their live-cell data. With thoughtful setup and patience, live-cell microscopy can reveal the dynamic secrets of living cells.

Author: Wiredu Fred – Editor-in-Chief at FrediTech and technology writer specializing in scientific instruments and microscopy. Fred is a technology journalist and editor with a focus on lab instrumentation and imaging technologies. He has years of experience covering advances in microscopy and bioscience equipment at FrediTech, providing expert insights to researchers and tech professionals.

FAQs (Common Questions)

What is live-cell imaging and why use it?

Live-cell imaging is observing living cells under a microscope over time (time-lapse). It lets scientists watch dynamic processes (cell division, migration, signaling) in real time, which static fixed-sample imaging cannot captureen.wikipedia.org. This yields more biologically relevant data, as cells are unperturbed by fixation. It is widely used in cell biology, neuroscience, pharmacology and other fields.

Why are inverted microscopes preferred for live-cell imaging?

Inverted microscopes have the objective lens below the stage, allowing easy imaging of cells in culture dishes or flasksfreditech.com. The cells grow on the bottom of the dish, so an inverted design prevents the dish from blocking the lens. It also accommodates bulky stage-top incubators for CO₂ and temperature control. Inverted scopes enable long-term live imaging without disrupting cell culture

How can I reduce phototoxicity and photobleaching?

 Use gentle illumination: choose the lowest light intensity and shortest exposures that still yield a visible signaltechnologynetworks.com. Prefer fluorophores excited at longer wavelengths (green/red range), which cause less damagetechnologynetworks.com. Use high-sensitivity cameras (binning/EM gain) so you can reduce excitation power. Also limit imaging frequency and duration – only image as often as needed. Always turn off the excitation light when not capturing images, as Keyence recommendskeyence.com.

How do I maintain cells in focus during long imaging?

Focus drift is common due to temperature changes or stage shifts. To prevent it, warm up all equipment thoroughly before imagingkeyence.com. Use autofocus or set up periodic Z-stack acquisitions to correct driftkeyence.comtechnologynetworks.com. Ensure the microscope and room temperature are stable (no open windows or AC drafts). If focus still shifts, reduce magnification (increasing depth-of-field) or add an objective heater for oil objectivesmicroscopyu.comkeyence.com.

What environmental conditions do live cells need during imaging?

Mimic incubator conditions as closely as possible: typically 37°C, ~5% CO₂ and >90% humiditykeyence.com. Use an incubation chamber with temperature and CO₂ control. If CO₂ is not available, buffer the medium (e.g. with HEPES) and use a large media volume to stabilize pHtechnologynetworks.comtechnologynetworks.com. Keep humidity high (add a water reservoir) to prevent evaporation. Tight environmental control has been noted as a “critical factor” for successmicroscopyu.com

Why are my cells dying in the microscope?

If your cells are dying during imaging, the most common causes are excess light, poor environmental condCommon causes include phototoxicity (too much light), poor environment (wrong temperature or pH), or contamination. Revisit tips above: lower the illumination, check that the chamber is at the right conditions, and ensure sterility. If using new dyes or media, test them on a spare sample first. Remember that live imaging stresses cells, so plan experiments to be as brief as feasible.

Each experiment may require tweaking these guidelines. Always document your conditions and use control experiments to isolate problems. Good luck, and happy imaging!
